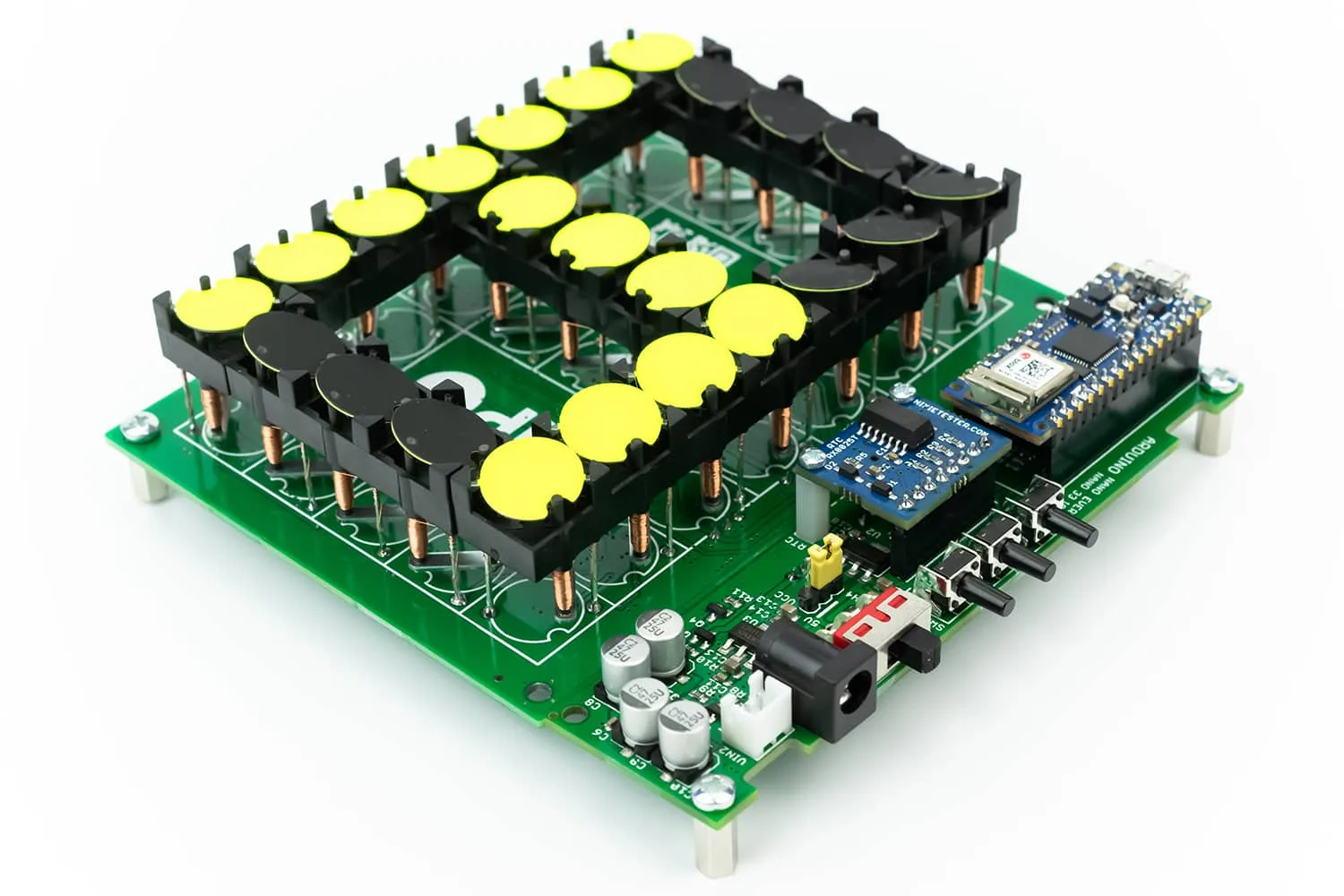

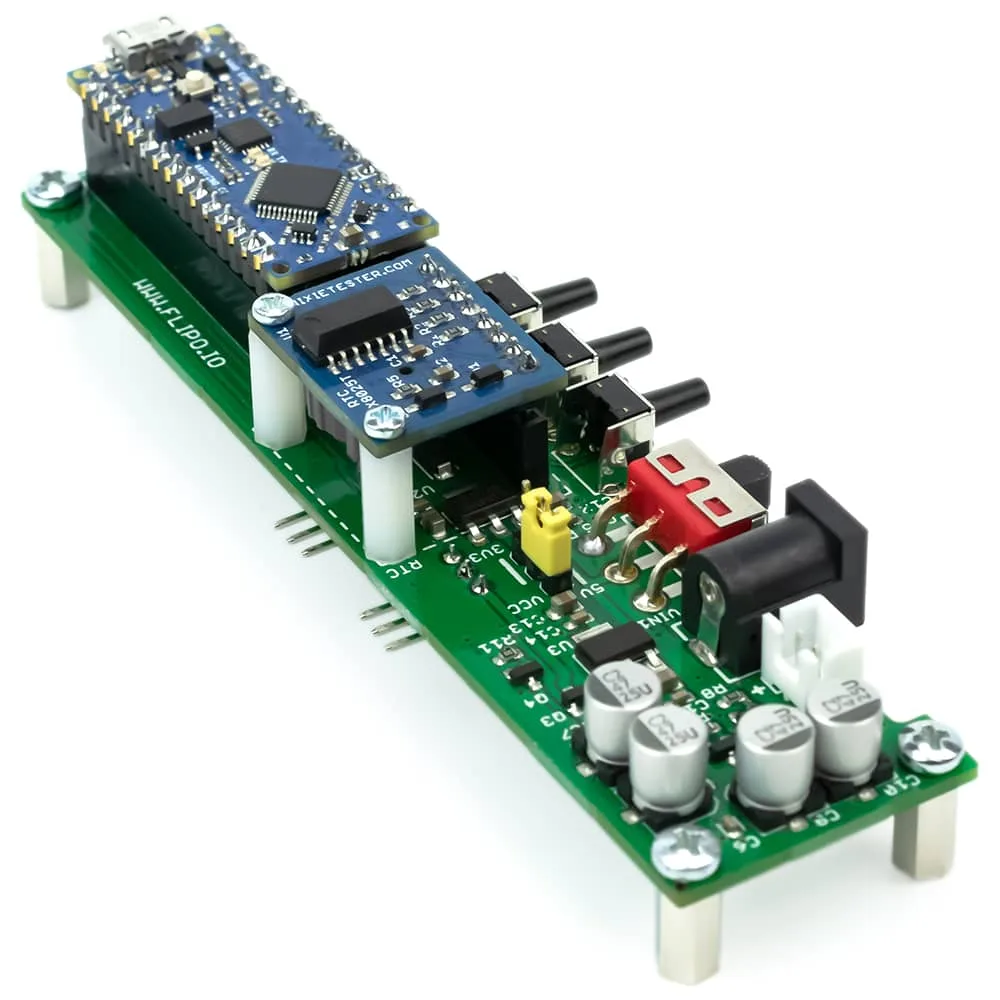

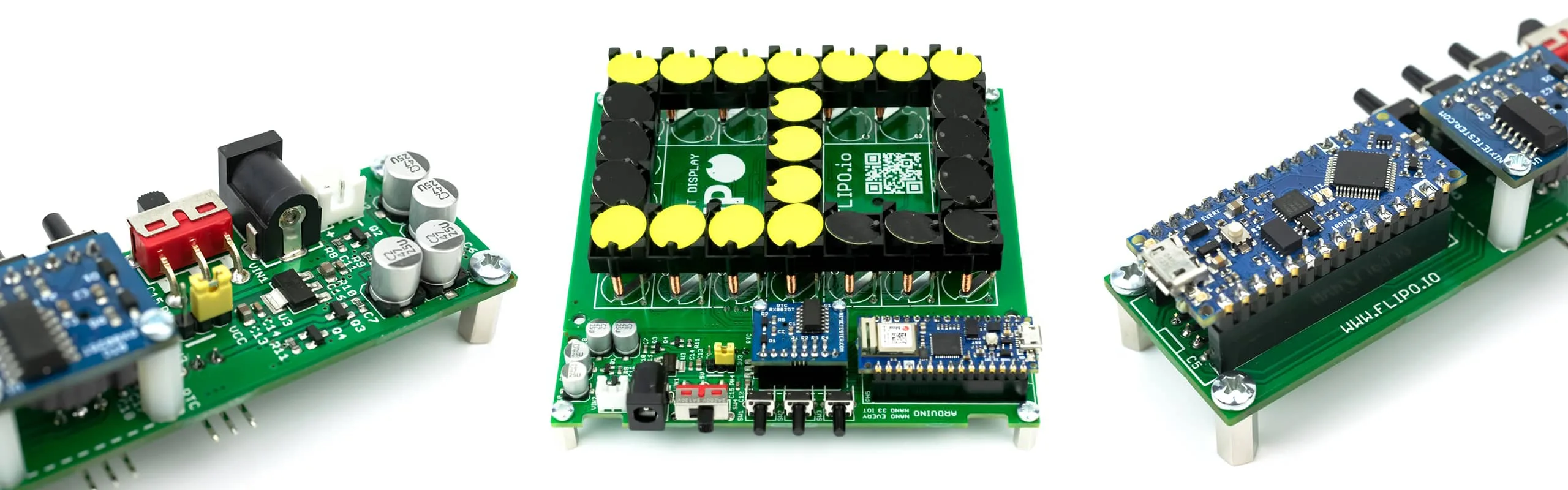

#1 ARDUINO CONTROLLER.

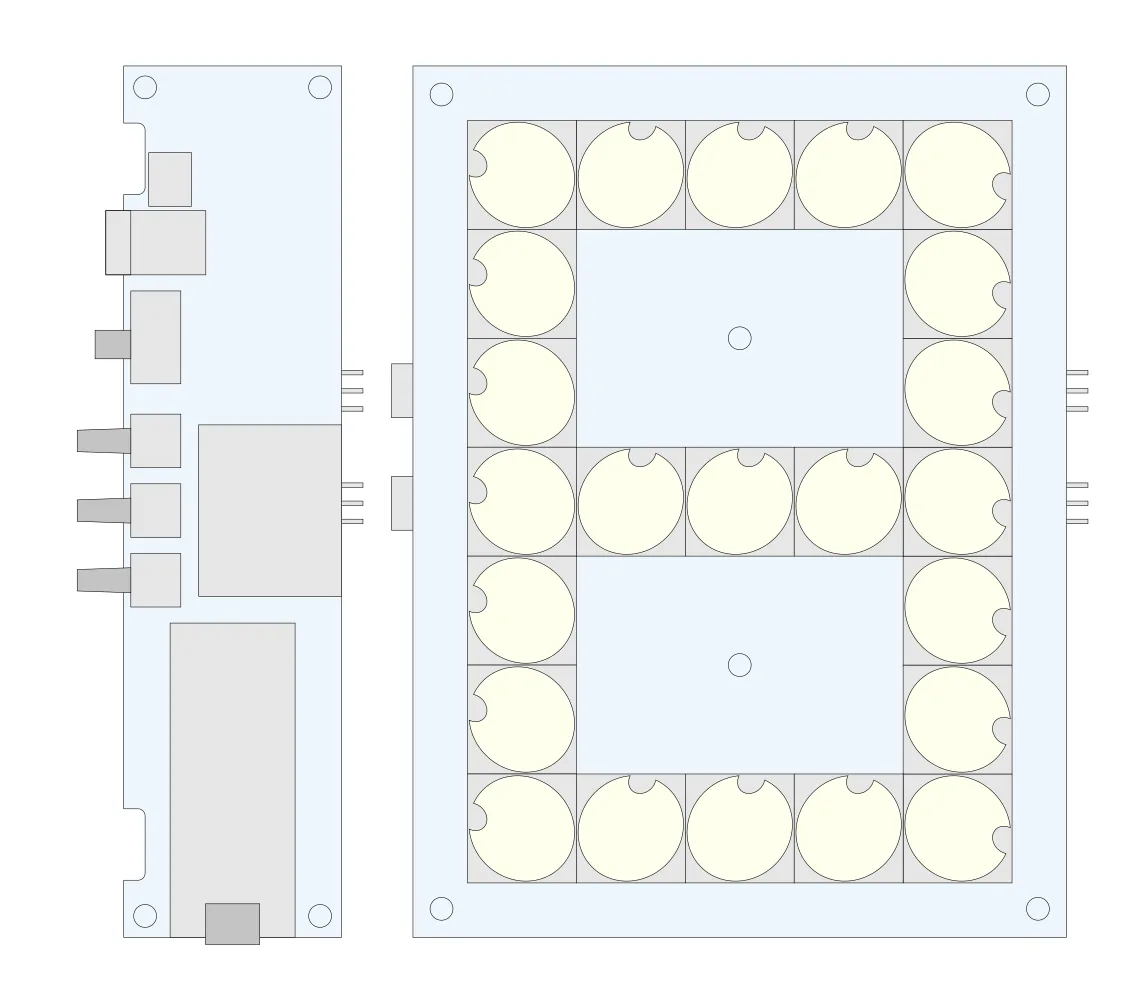

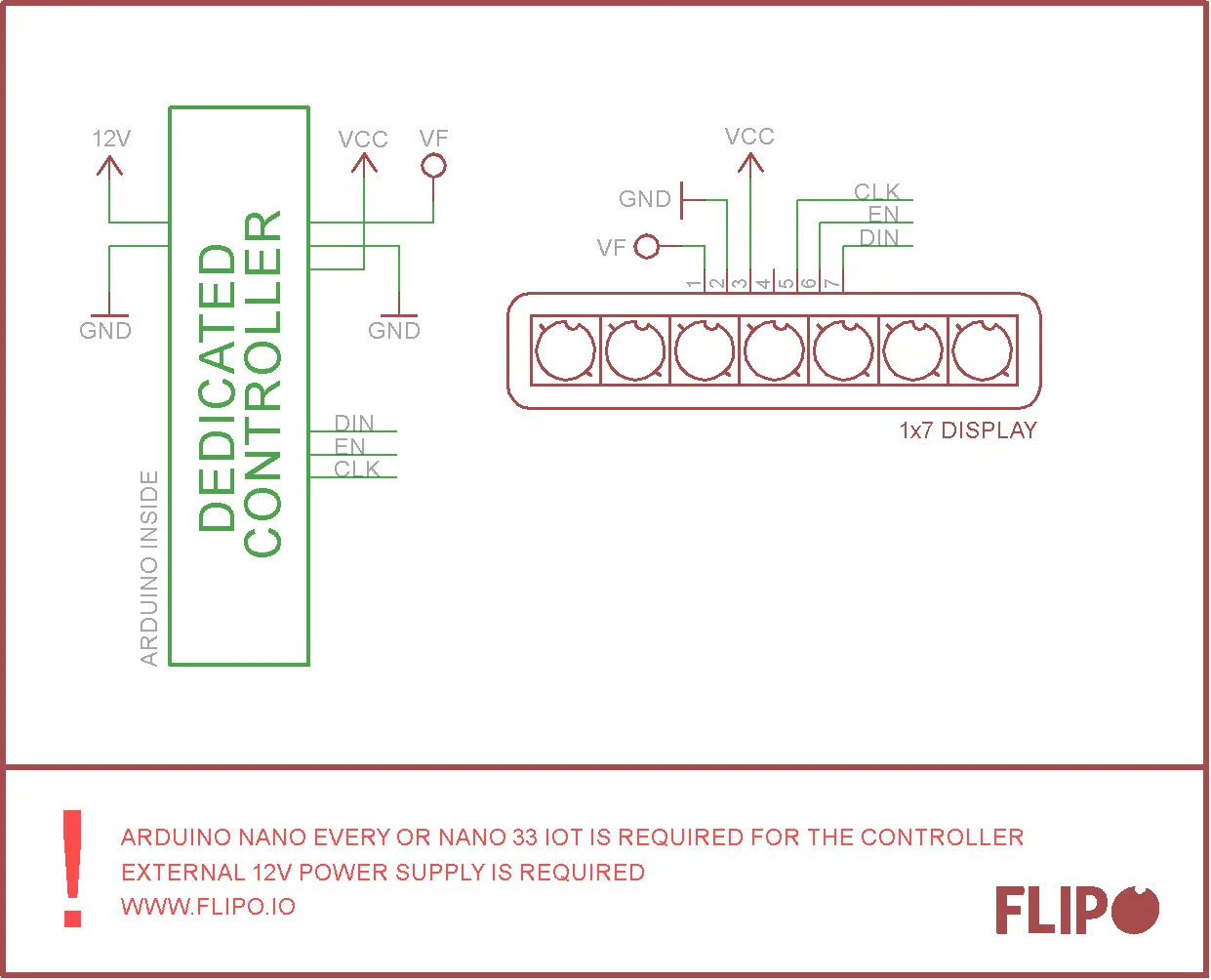

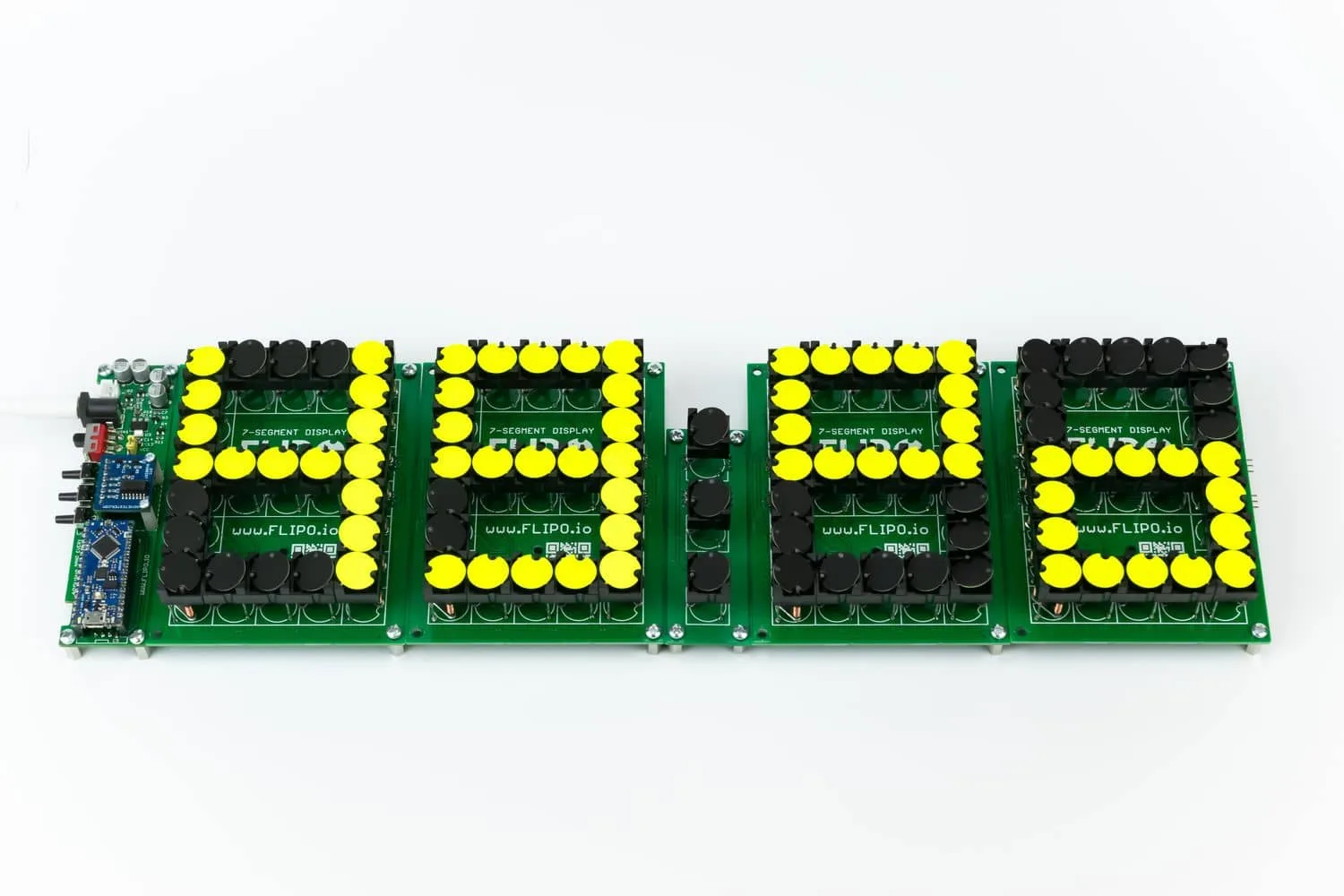

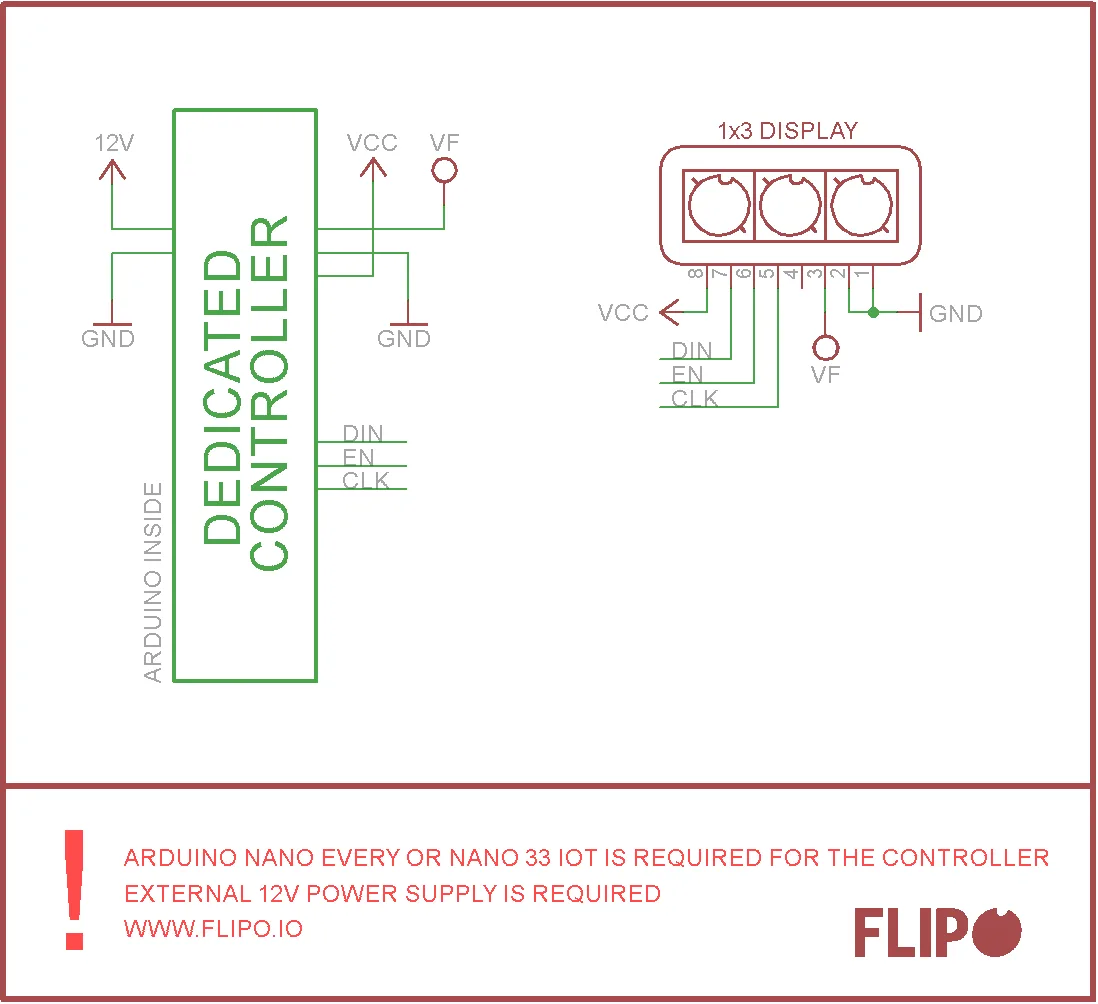

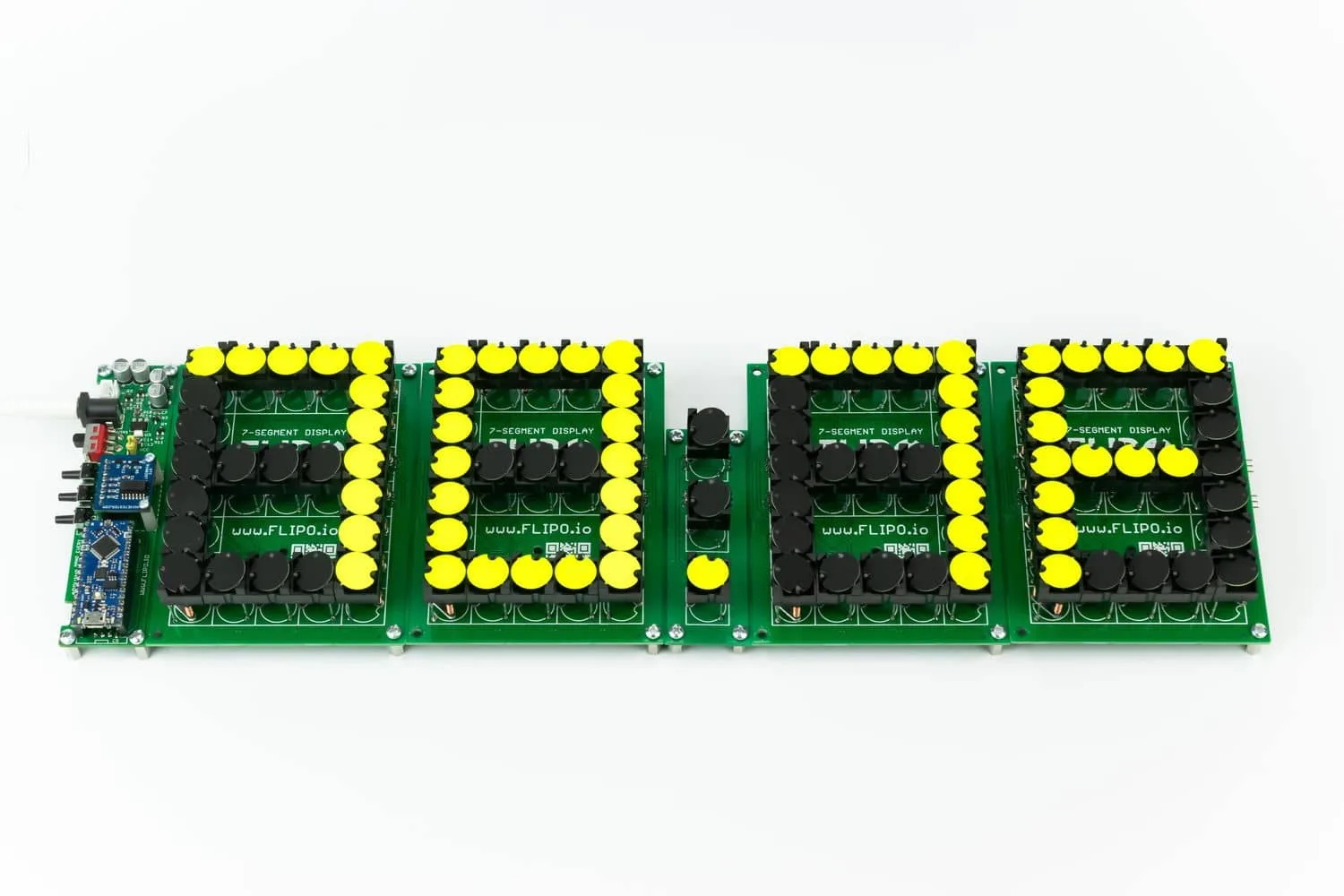

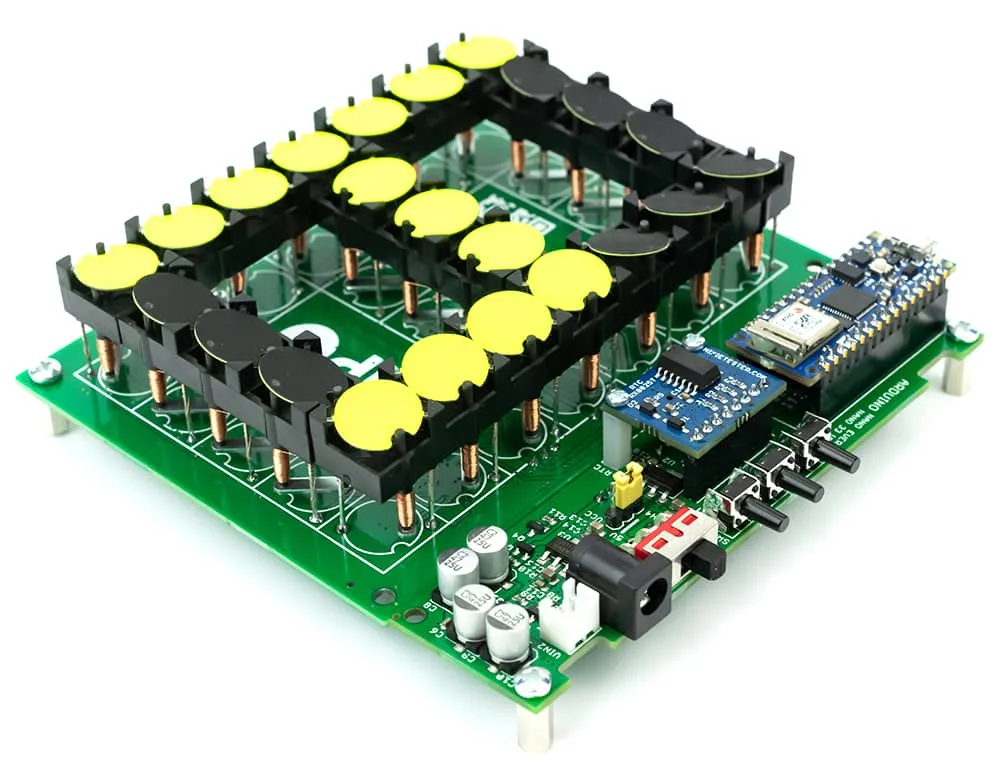

The controller is designed to make operating flip-disc displays as simple as possible. The integrated modules allow you to build a 4 or 6 digit clock, thermometer, hygrometer, scoreboard or any display in any configuration allowed by the dedicated Arduino library. Below you can find extensive documentation of the project, along with sample diagrams of how the display modules connect to the controller, as well as many code examples for Arduino.
Modules dedicated and designed to work with:

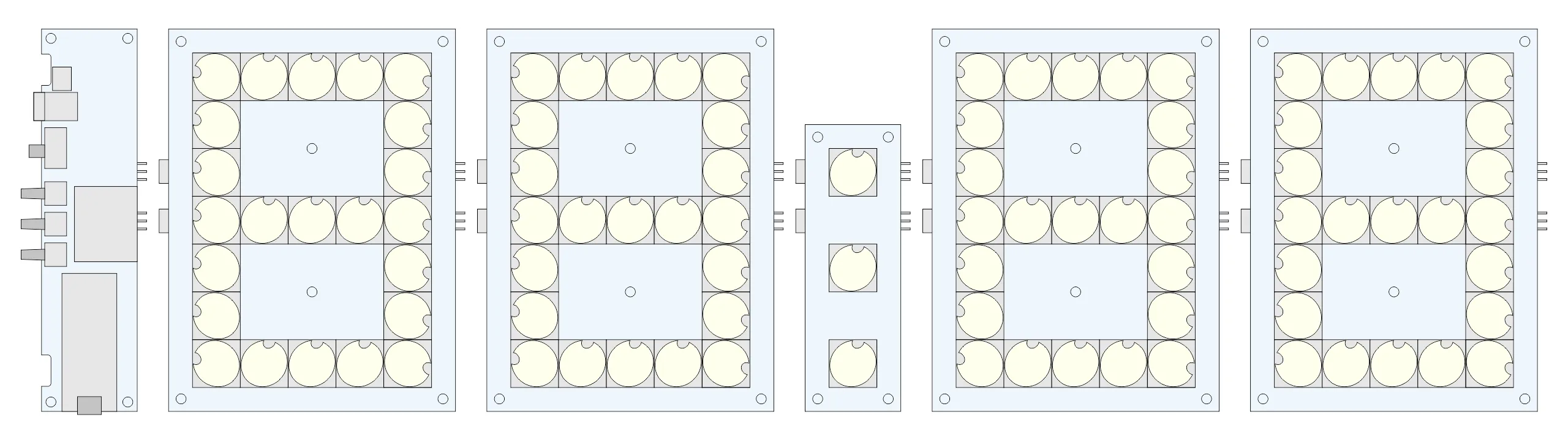

- Flip-disc clock design in preparation

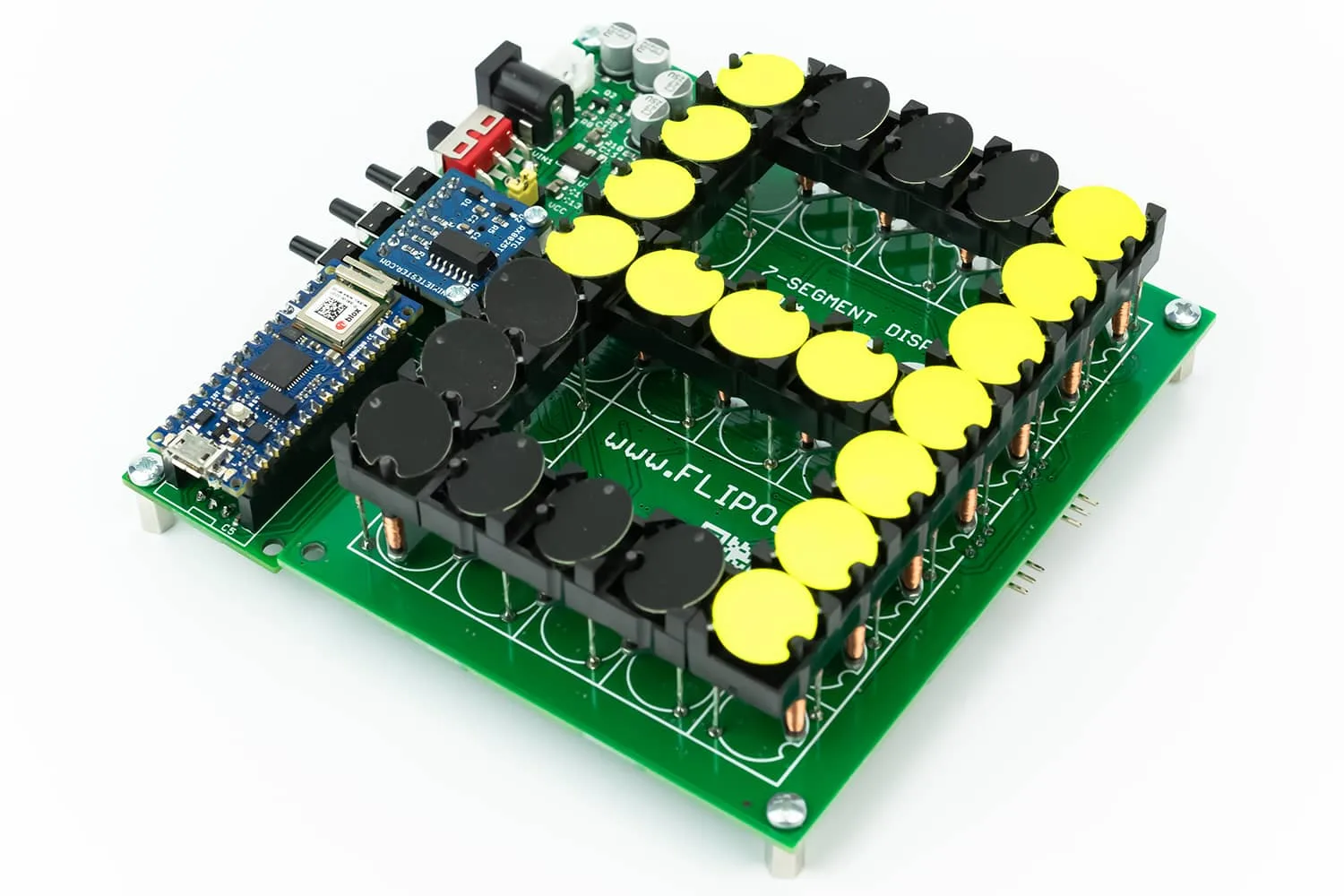

- 7-Segment Display
- 2-Dot Module
- 3-Dot Module

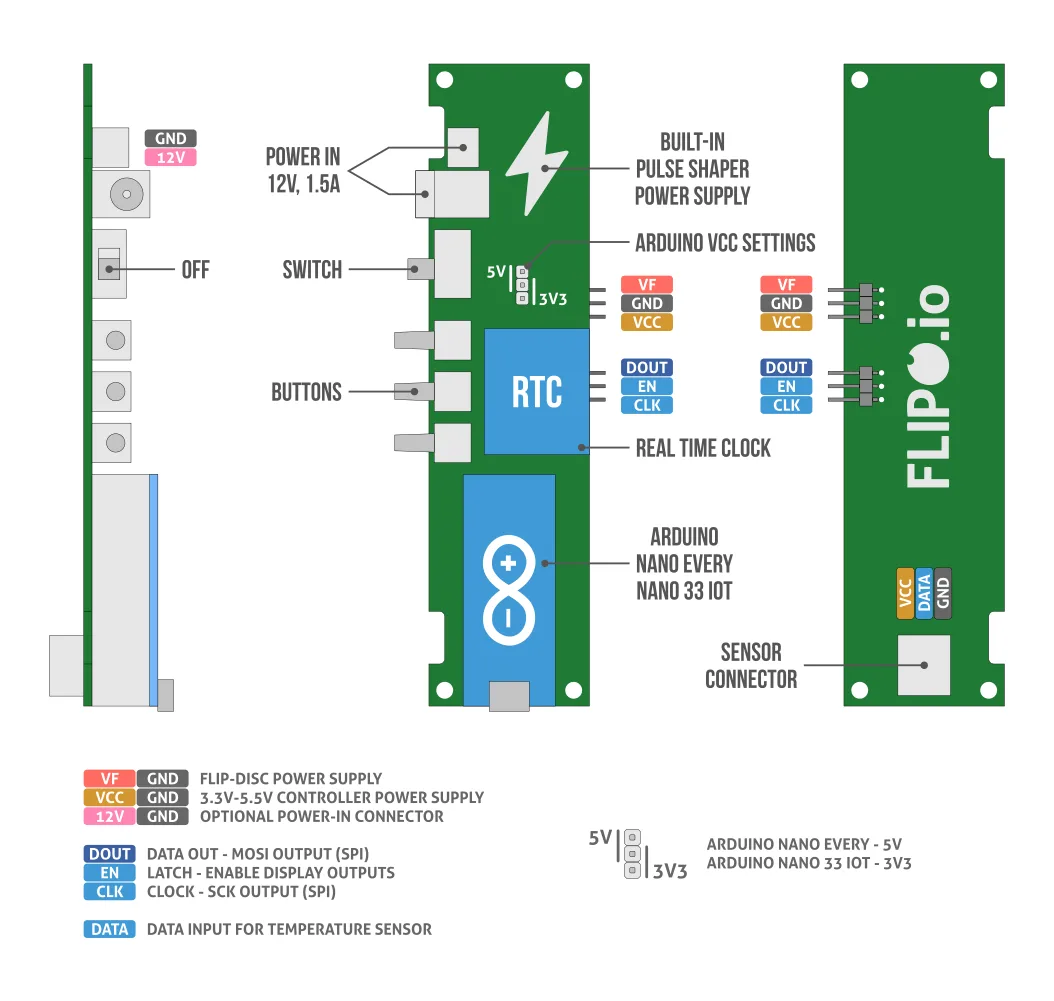

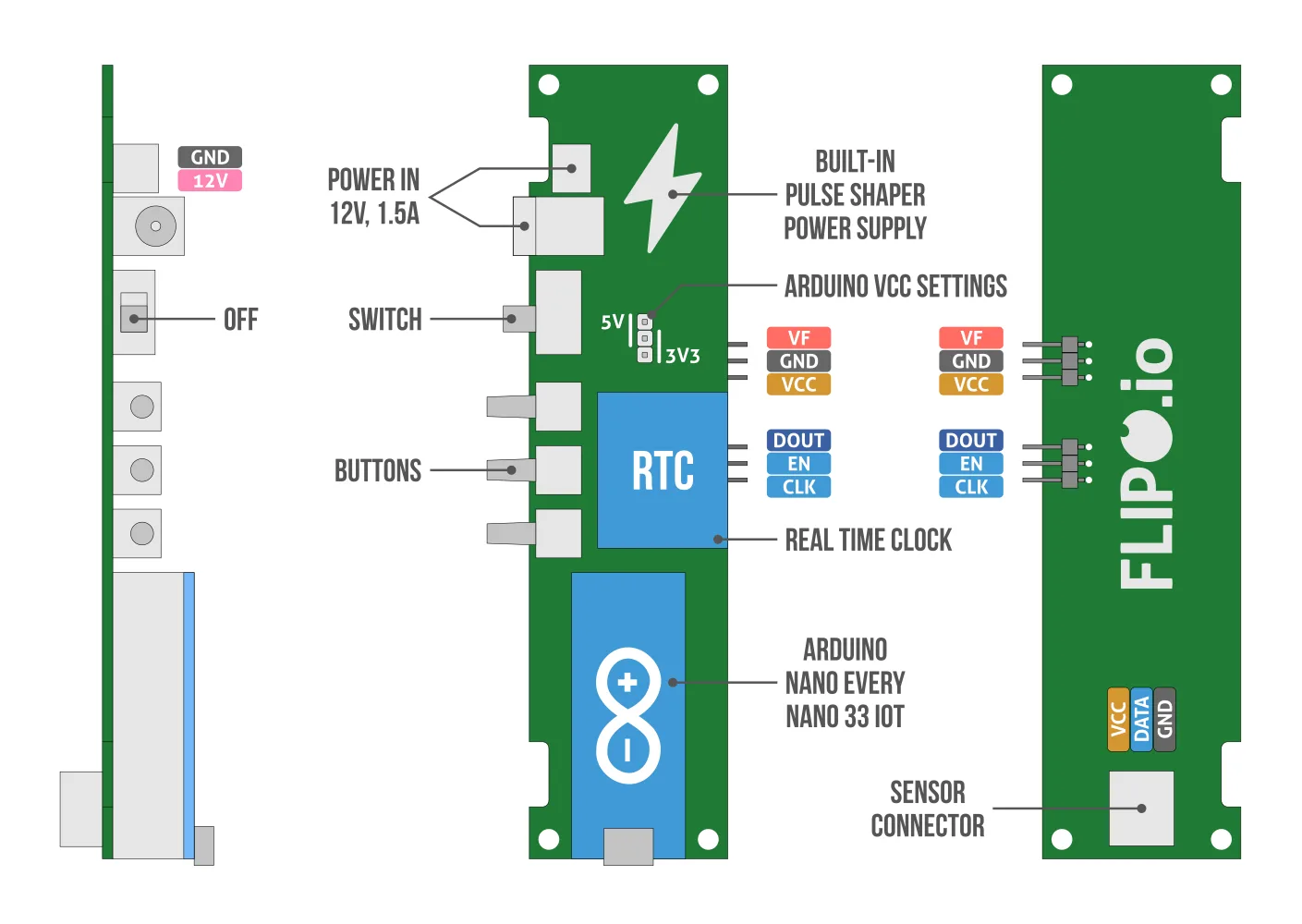

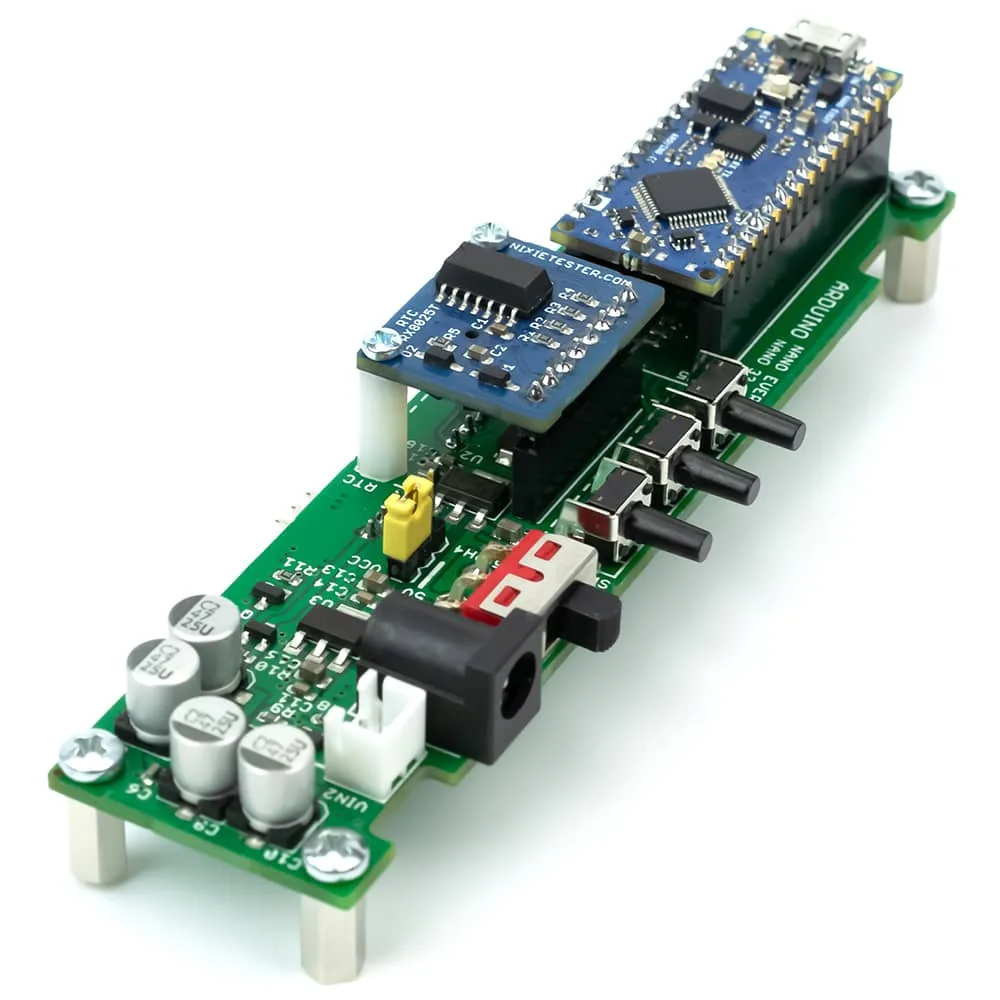

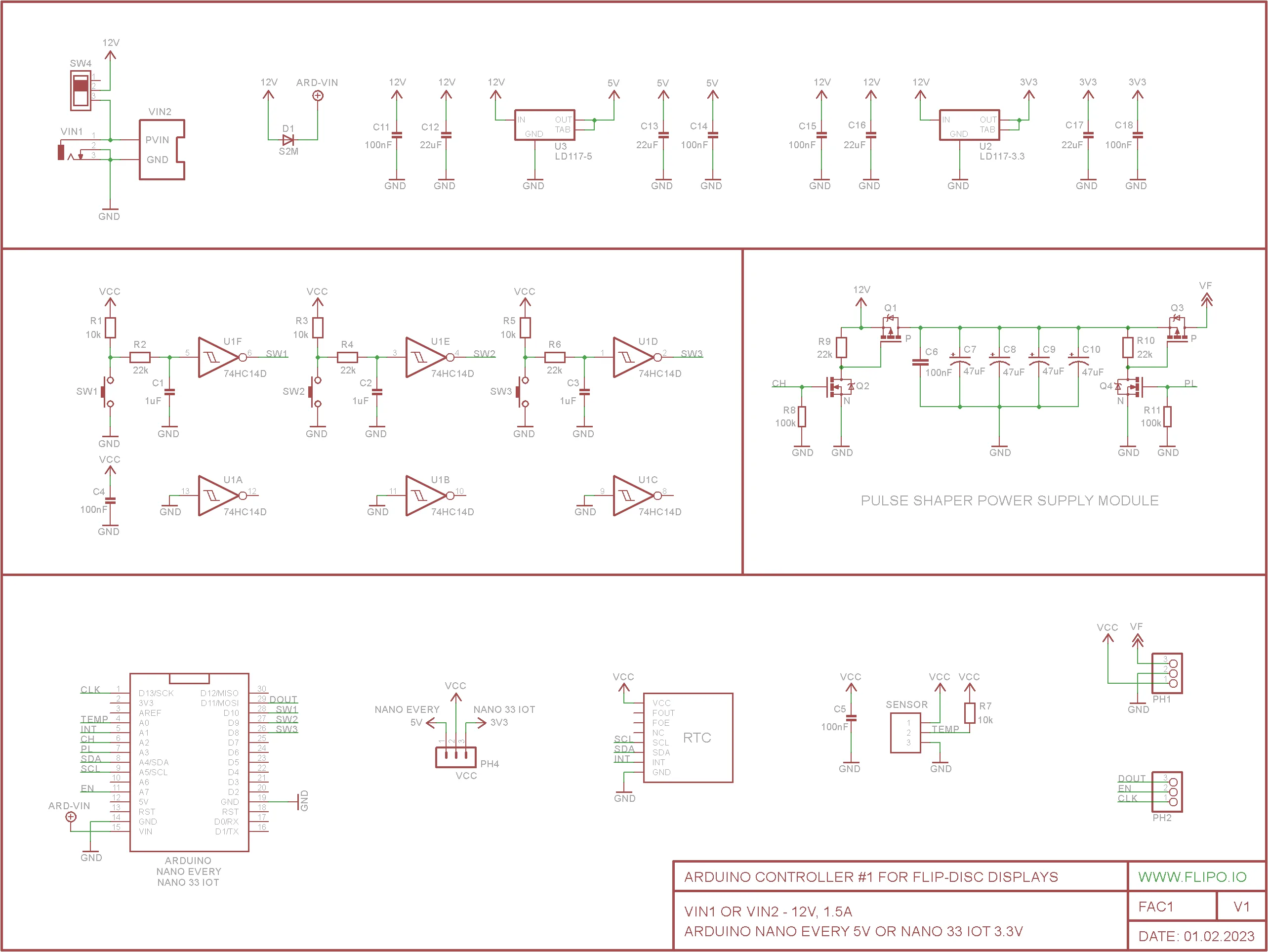

FEATURES & SPECIFICATIONS.
- Dedicated Arduino library
- Allows you to control any flip-disc displays
- Real Time Clock module on board RX8025T (Arduino library)

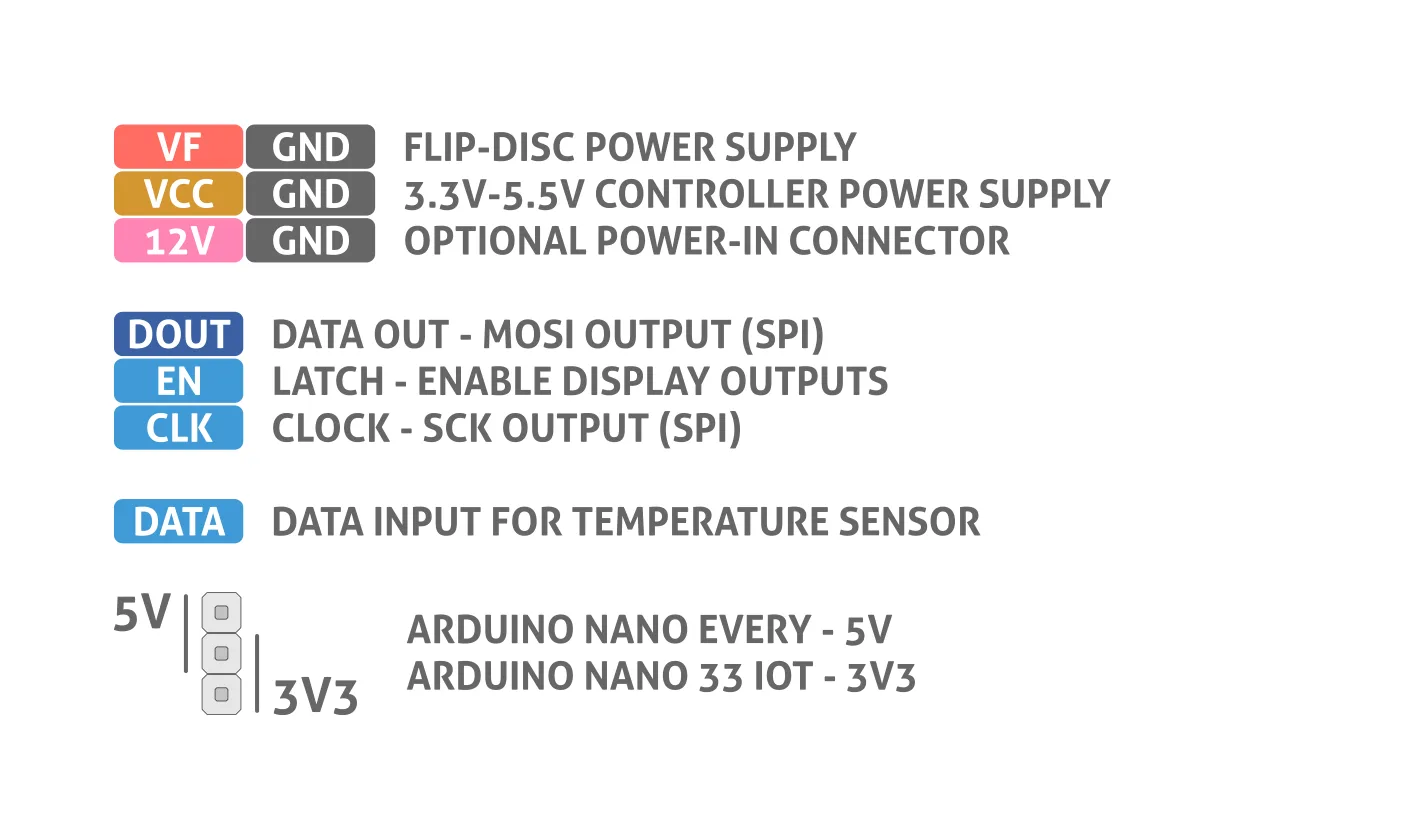

- Temperature DHT11/DHT22 sensor connector (3 pins XH2.54)

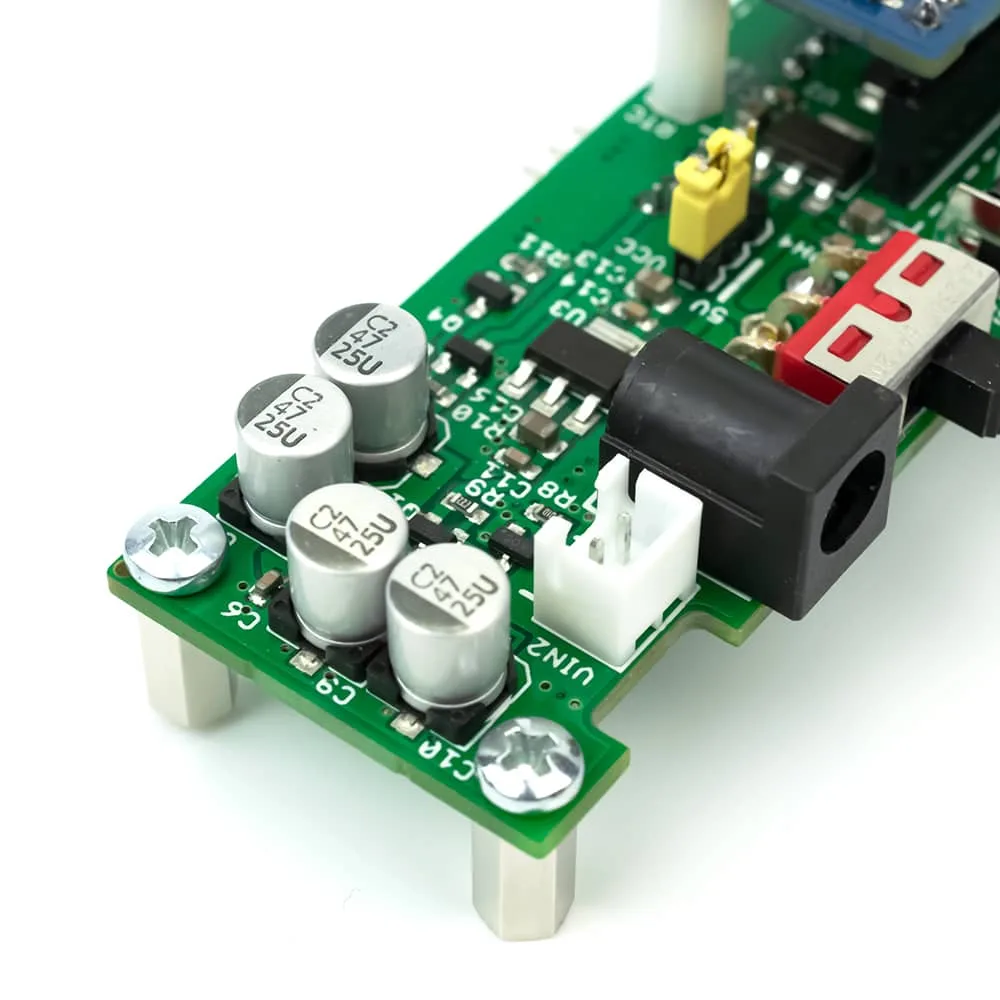

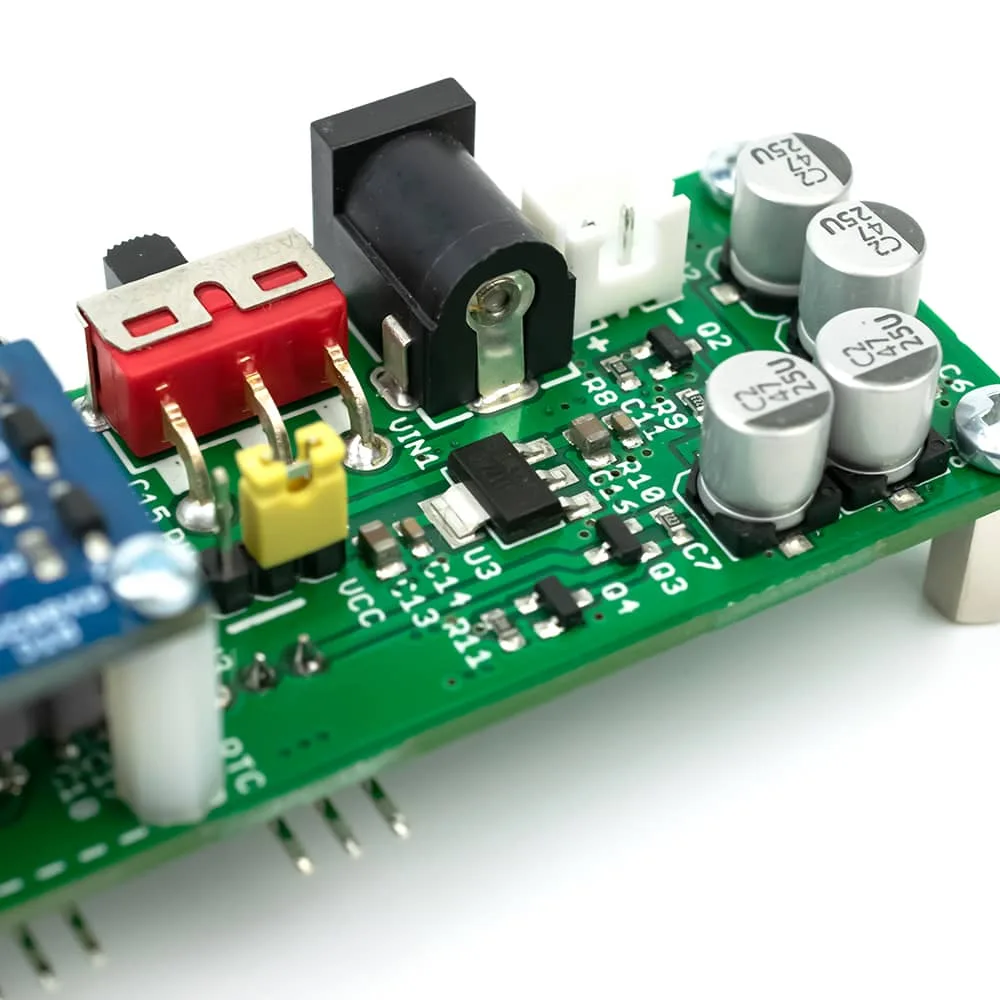

- Built-in Pulse Shaper Power Supply module

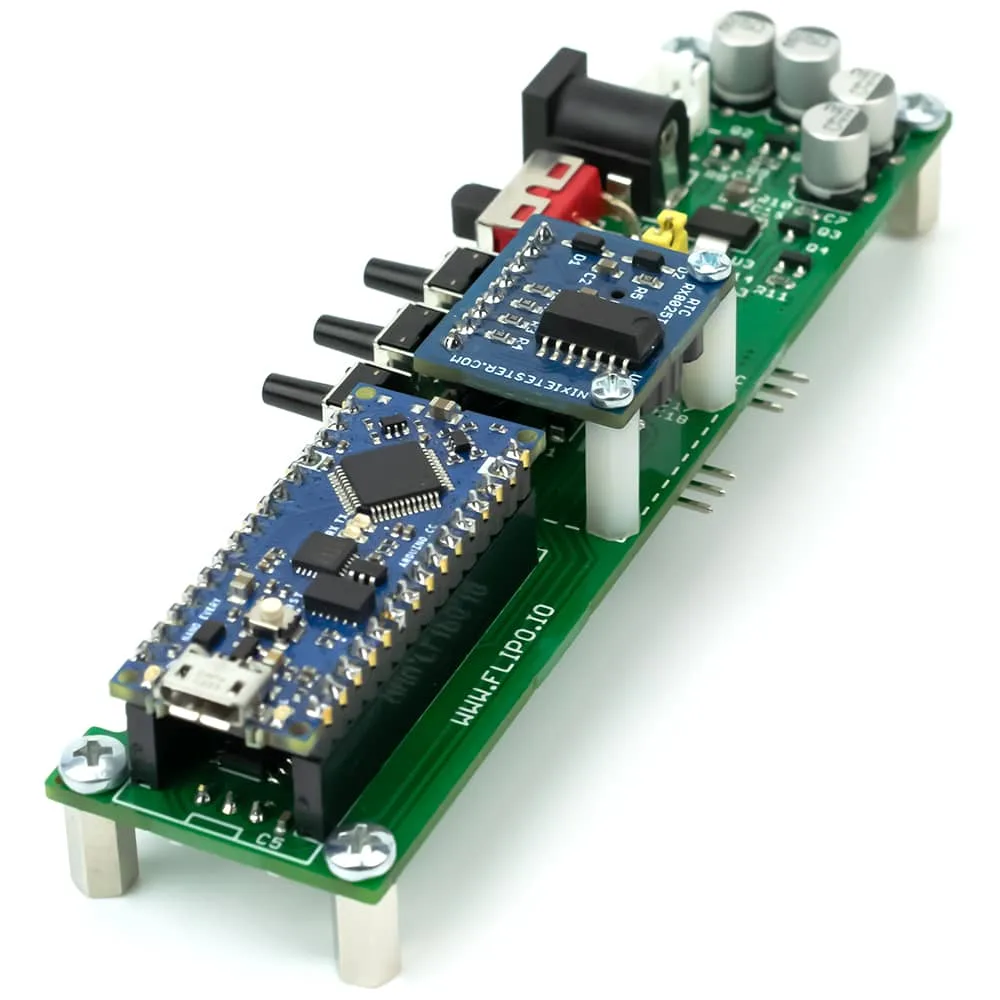

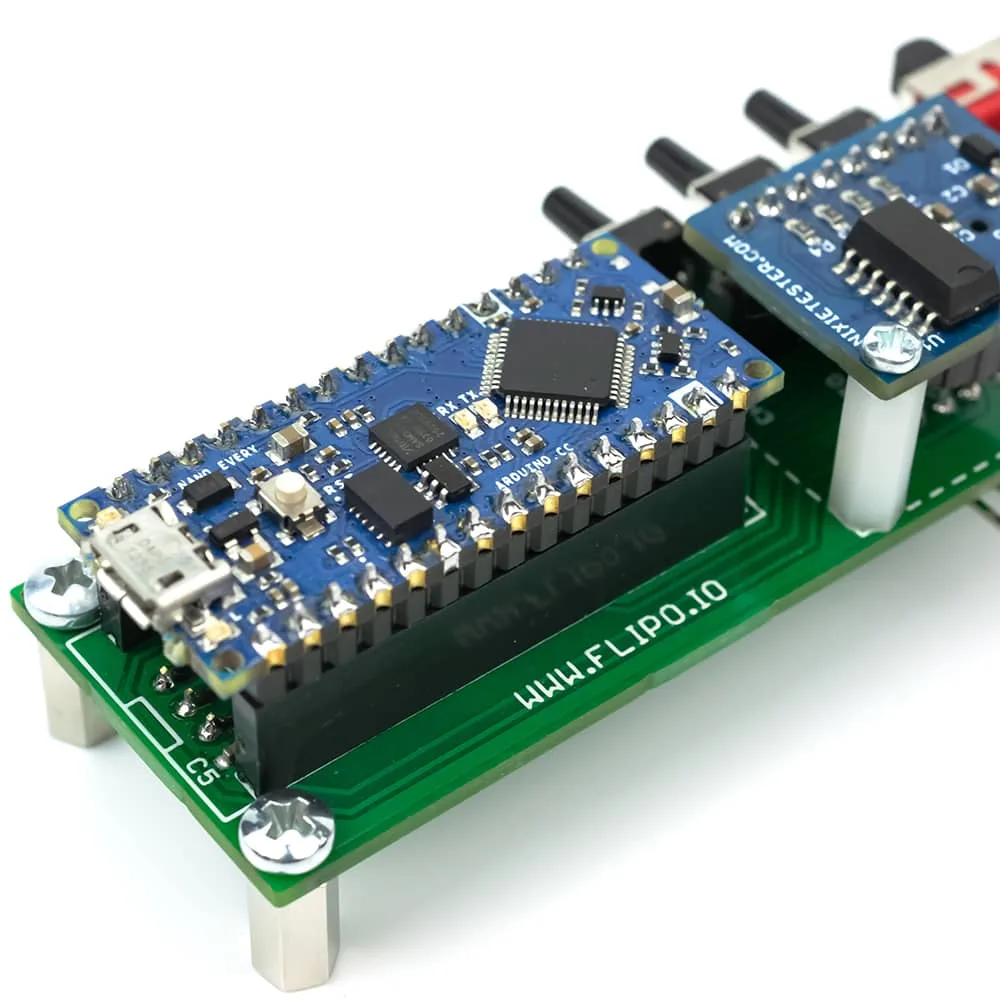

- Arduino Nano Every / Nano 33 IoT connector
- Voltage level settings on board: 5V (Nano Every) / 3.3V (Nano 33 IoT)

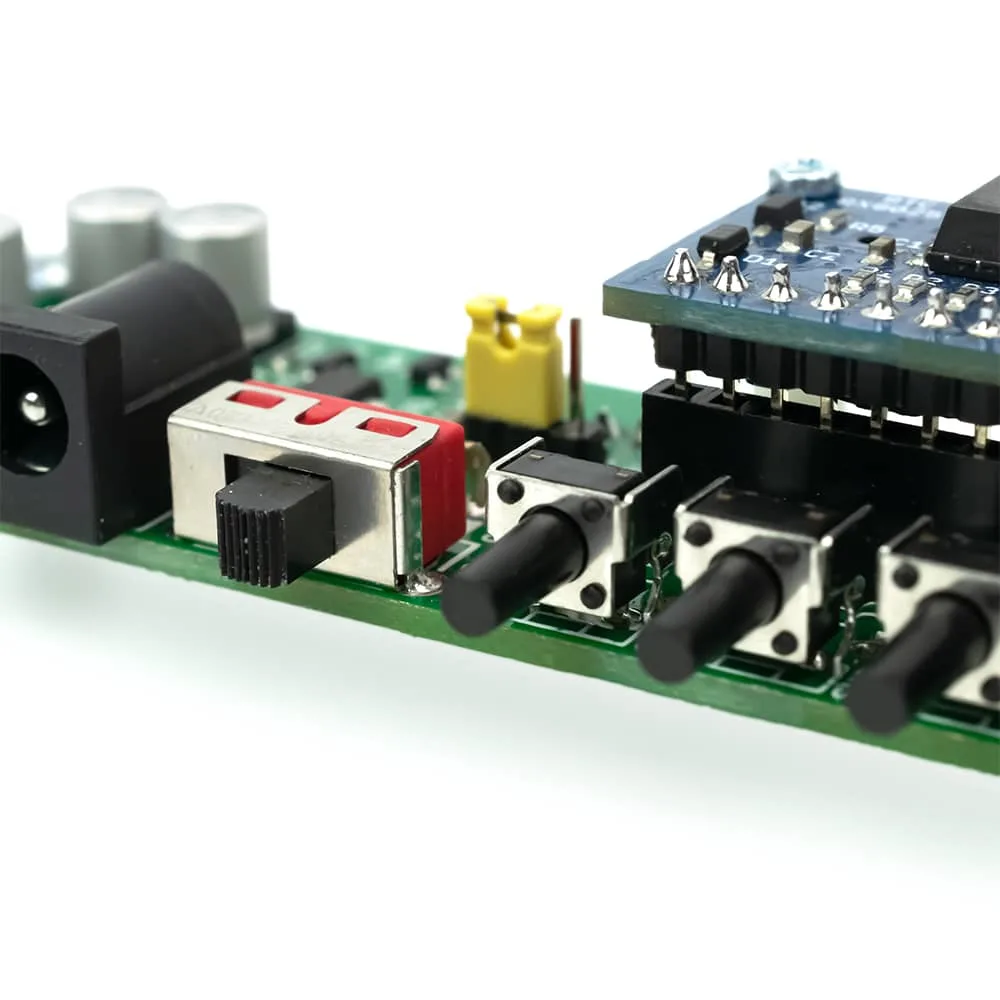

- 3 buttons with hardware debouncer built in
- Power switch (on/off)
- #1 power input connector (2 pins XH2.54)
- #2 power input connector (plug ⌀ 5.5mm, center pin ⌀1.5 mm positive+)
- 12V, 1.5A external power supply is required (#1 or #2 connector)

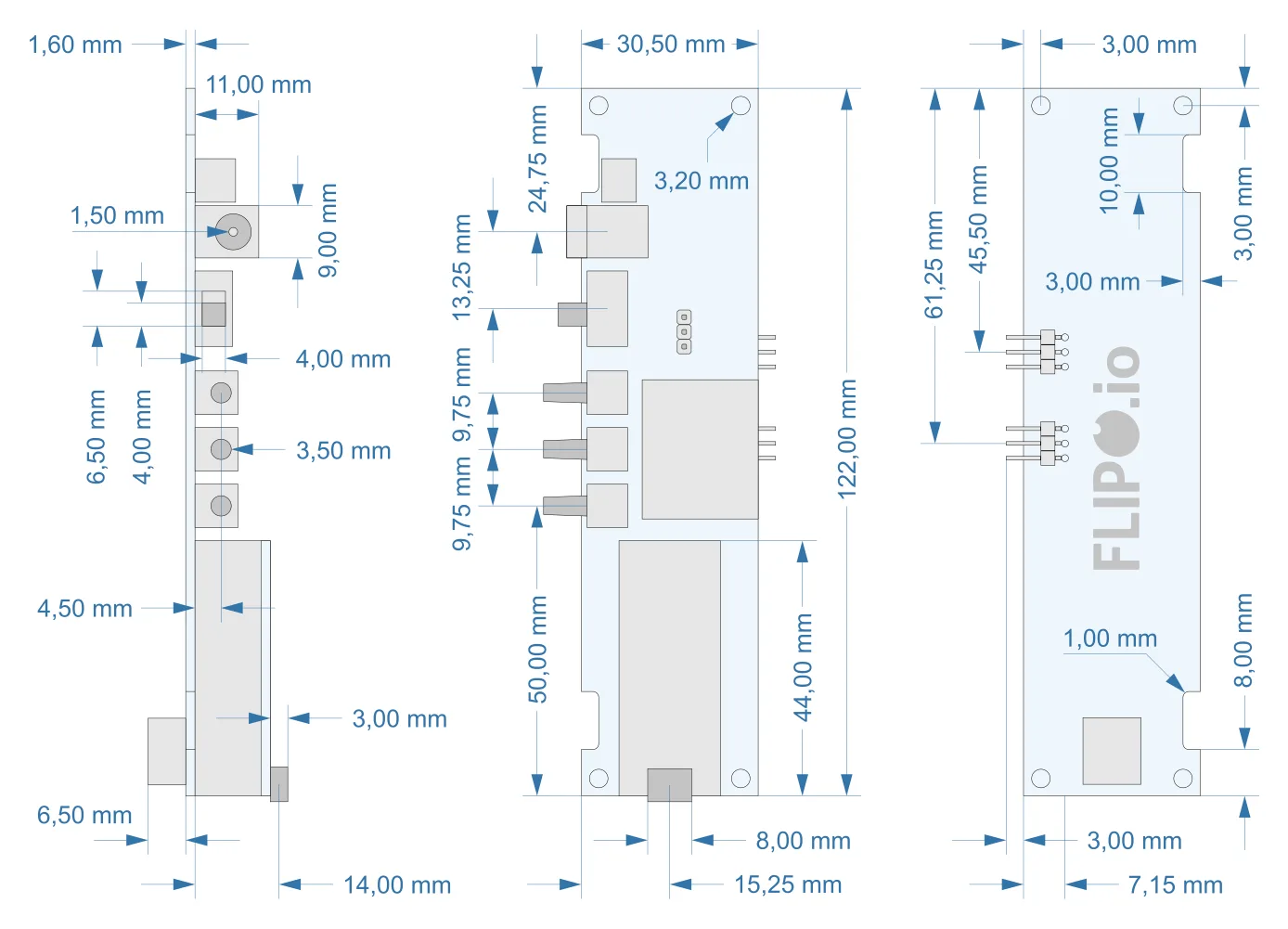

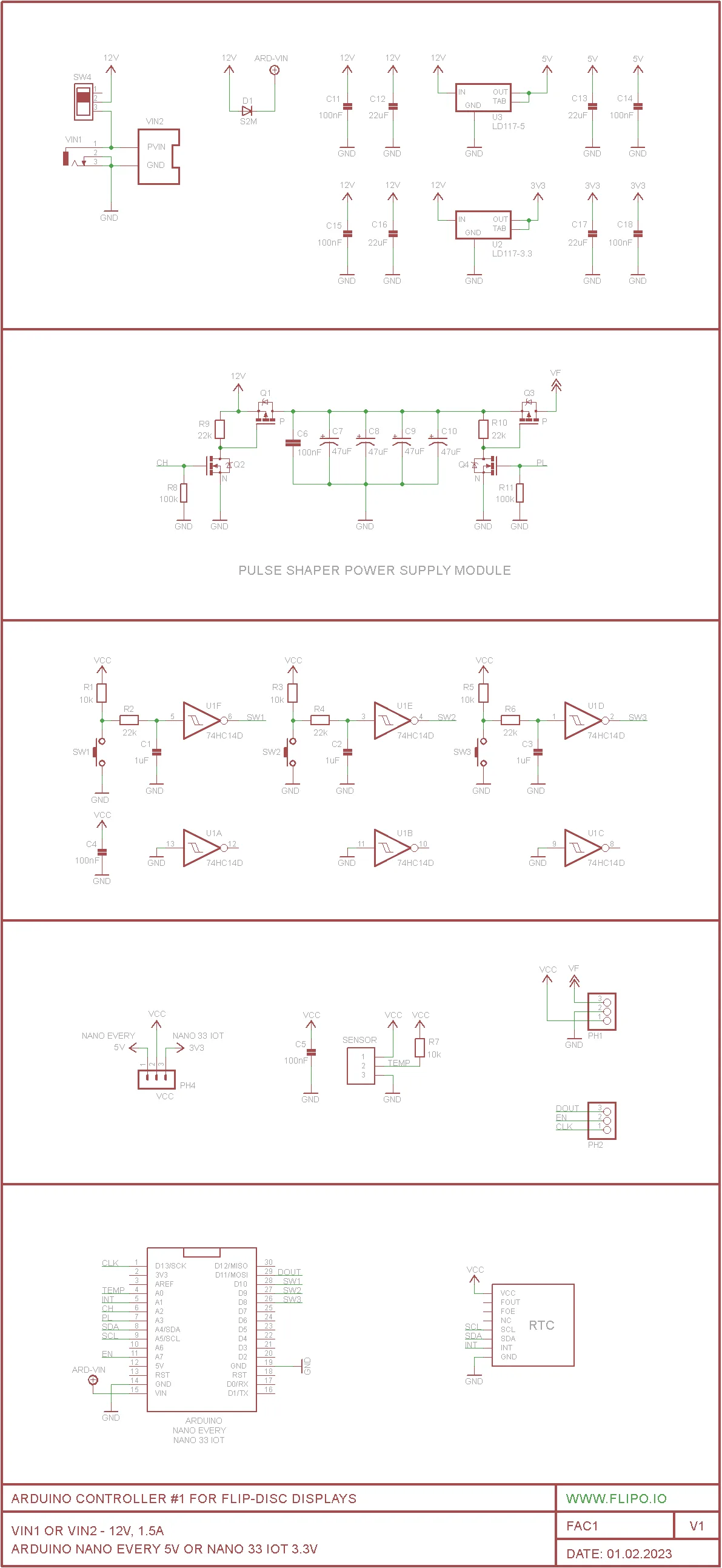

DATASHEET.
