Arduino Shield 1x3 Flip-disc Display

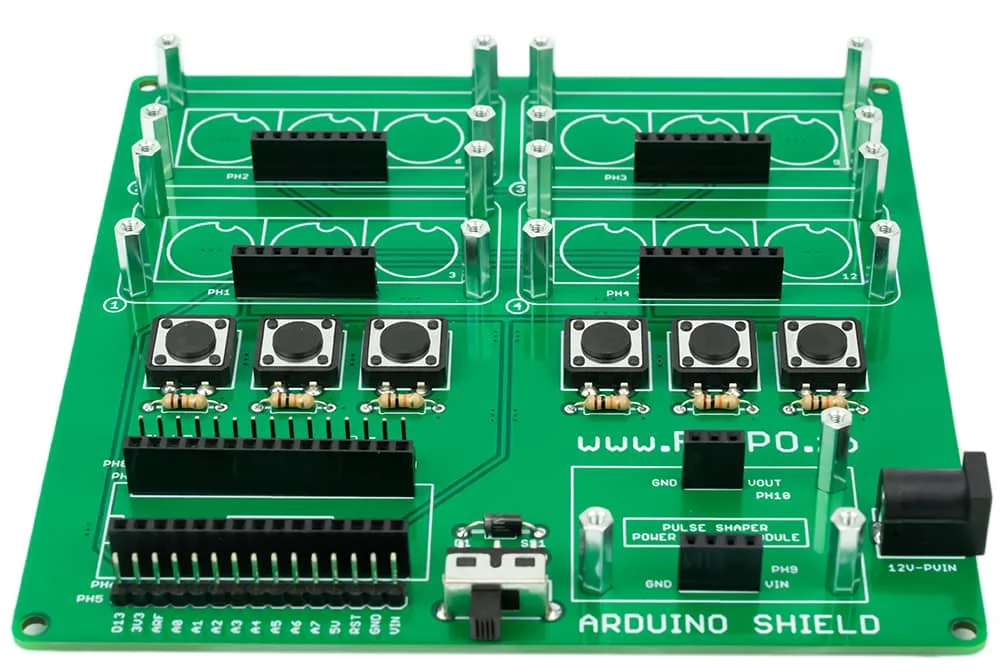

Arduino Shield 1x3 Flip-disc Display

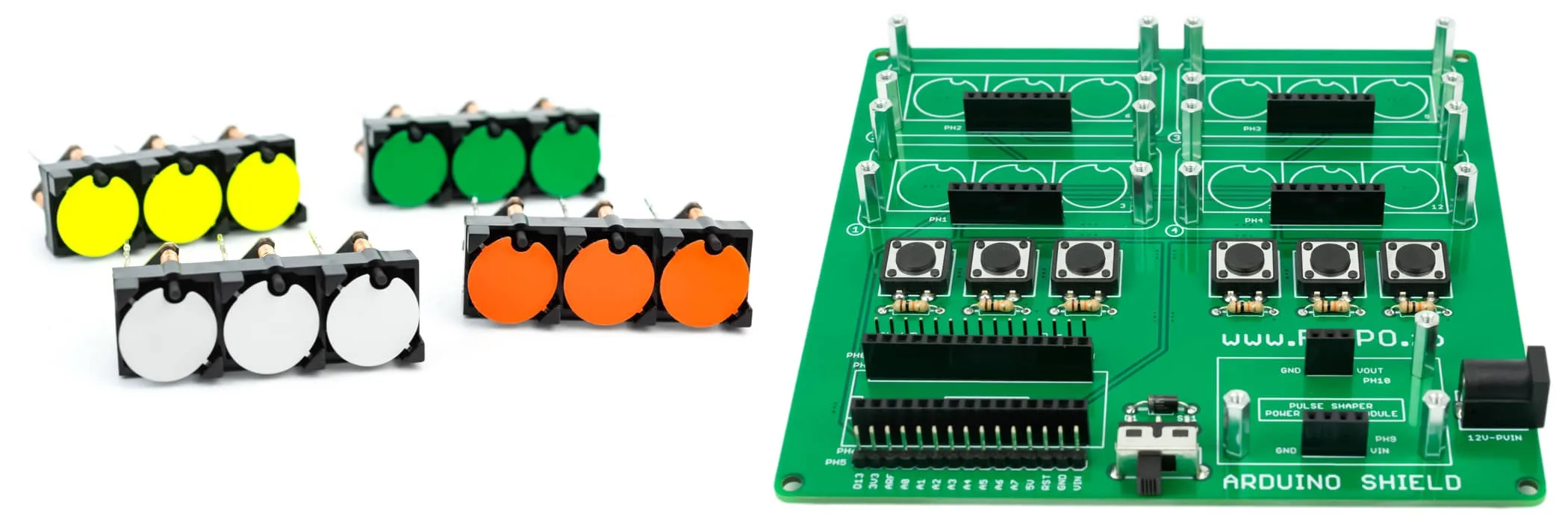

ARDUINO SHIELD FOR 4 x 1×3 FLIP-DISC DISPLAY.

The shield allows you to connect four 1×3 flip-disc displays, all Arduino pins are also available for connecting other modules. The shield can be used for learning and prototyping projects based on these displays, or just for fun.

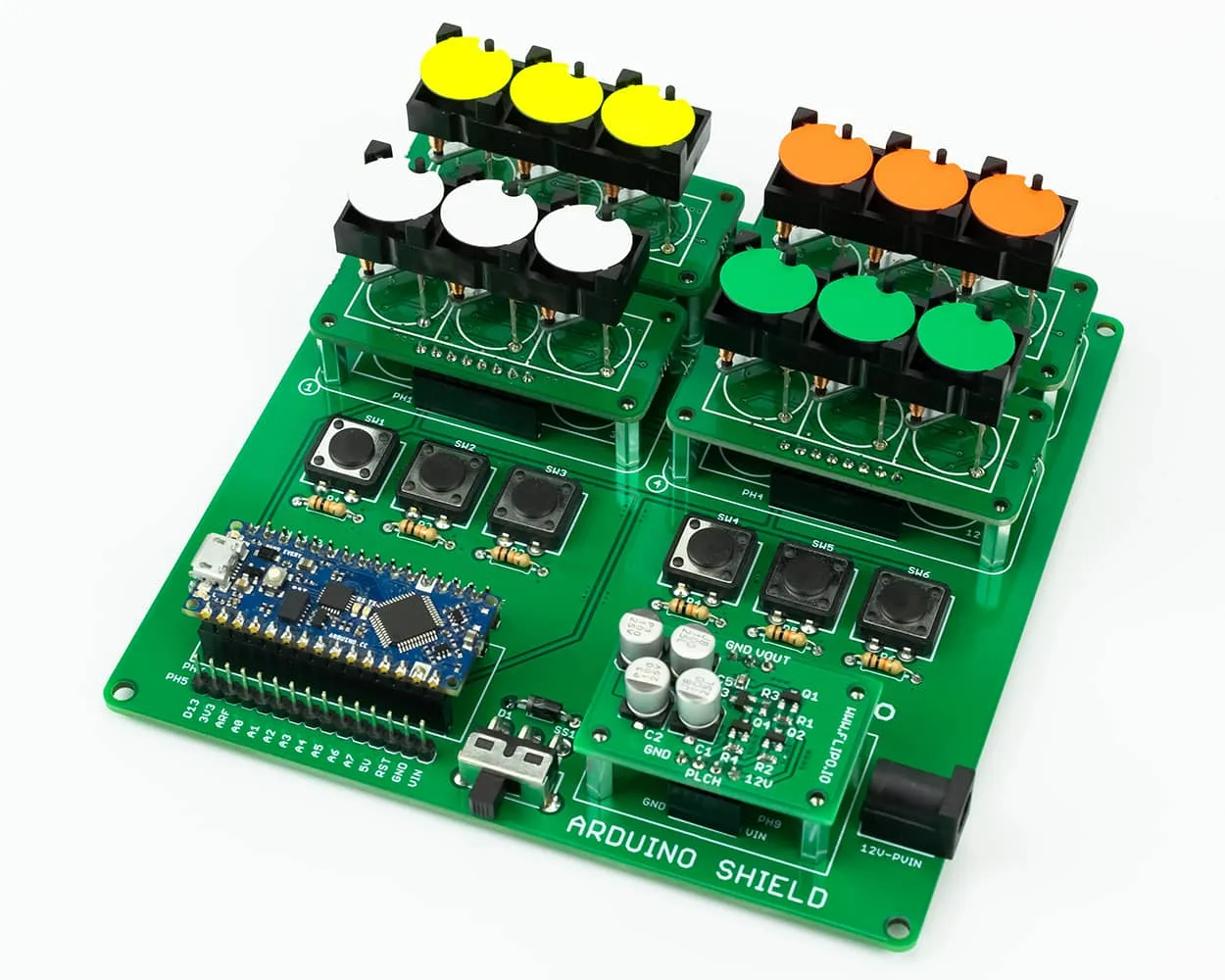

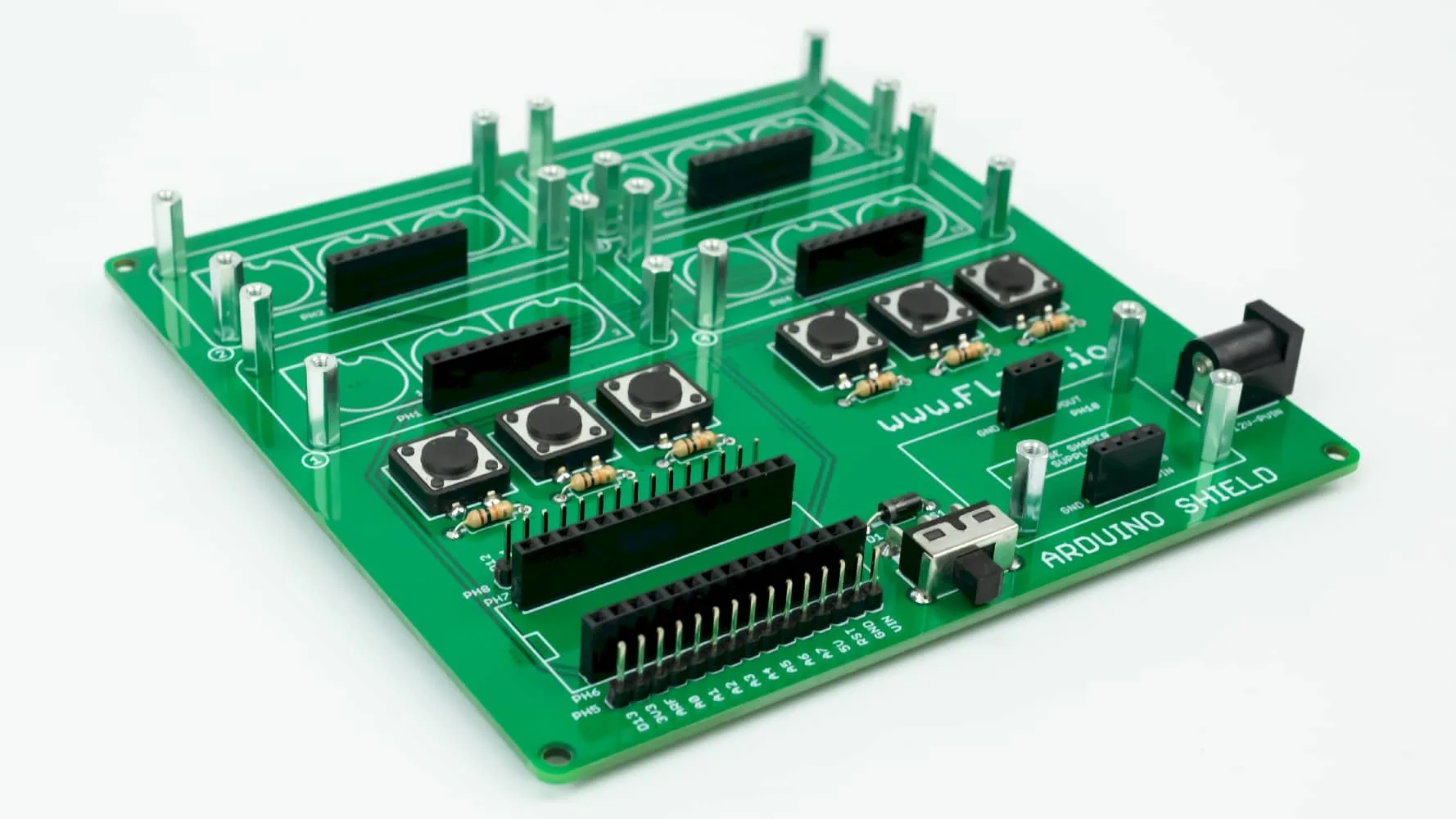

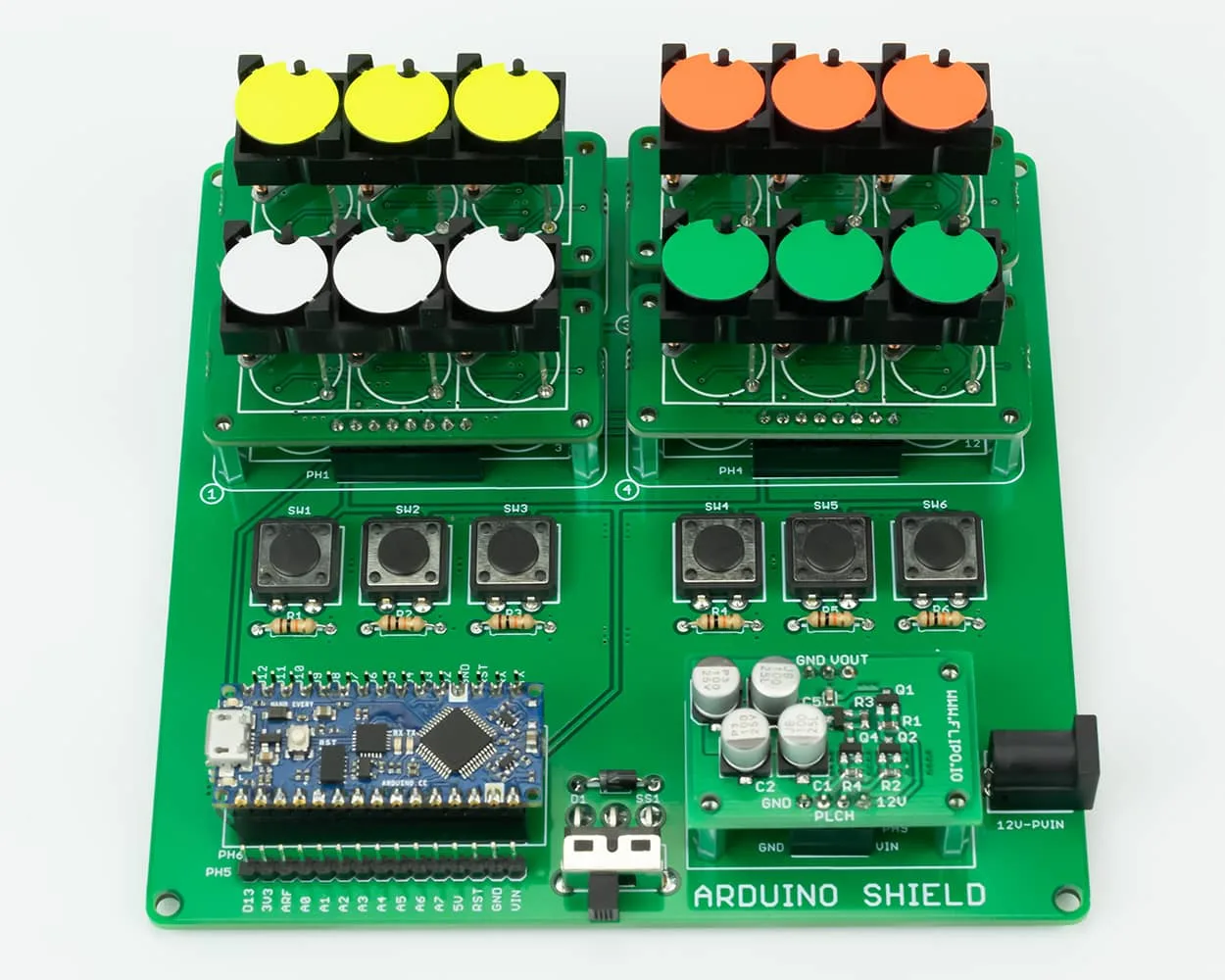

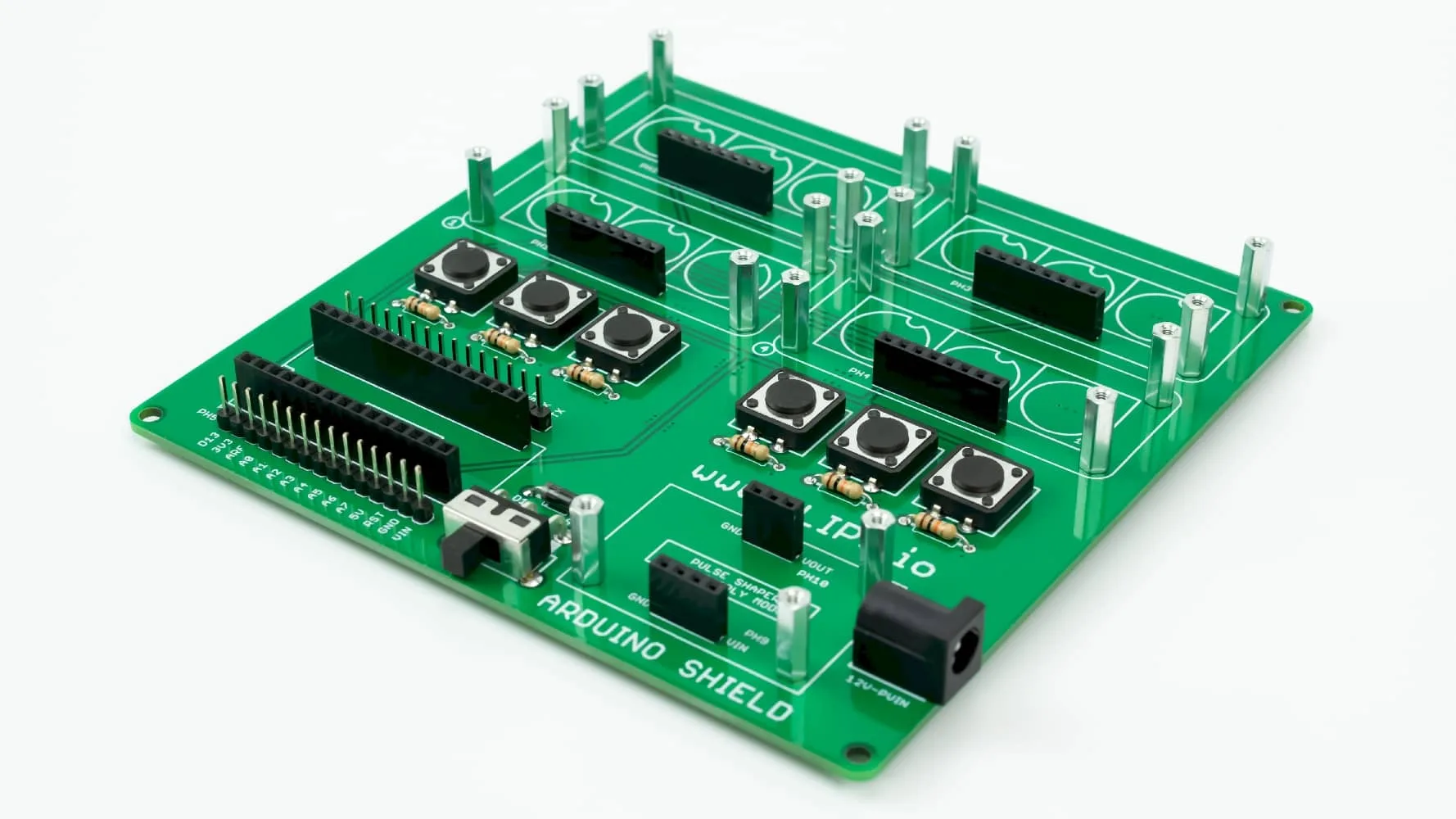

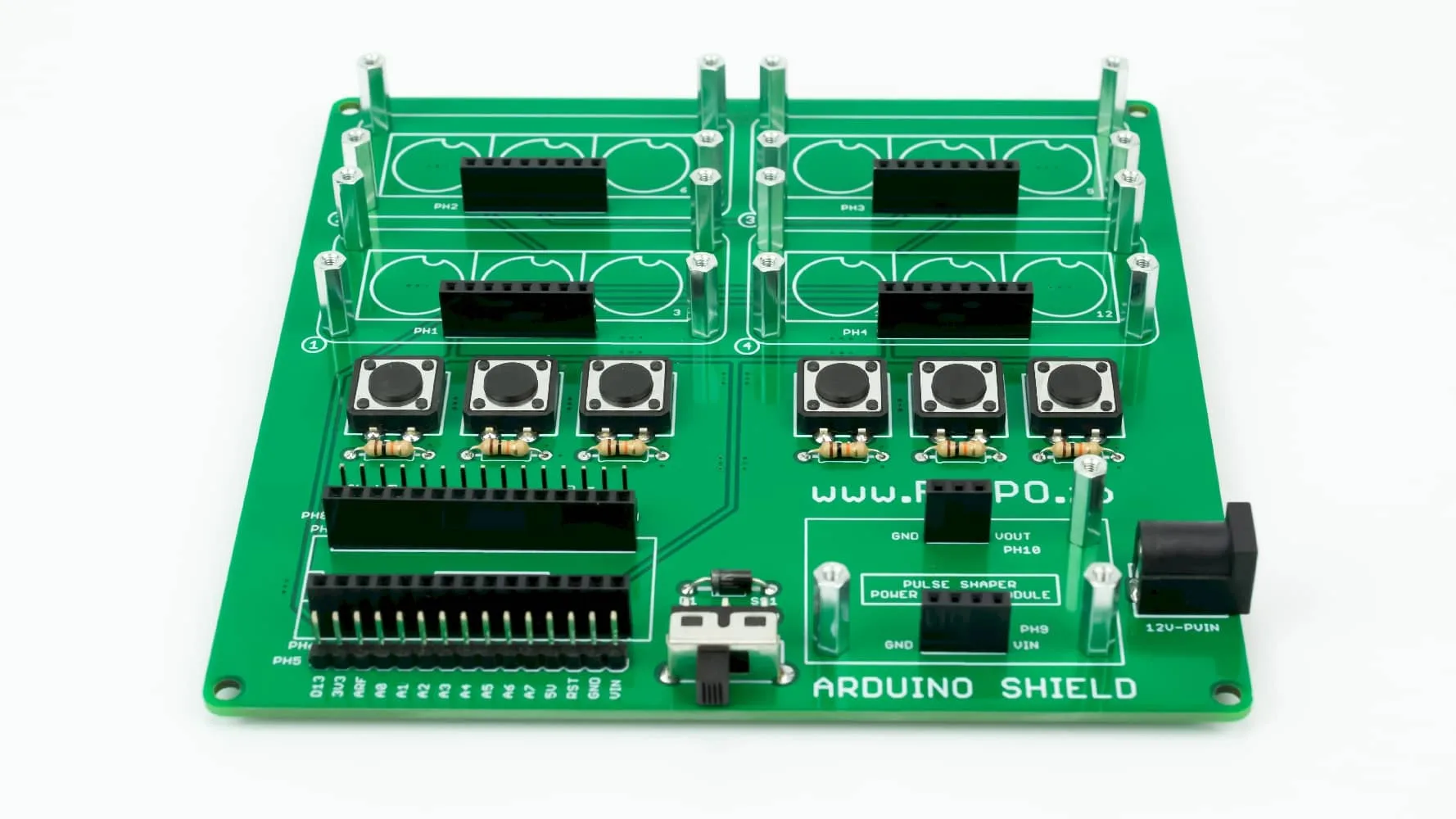

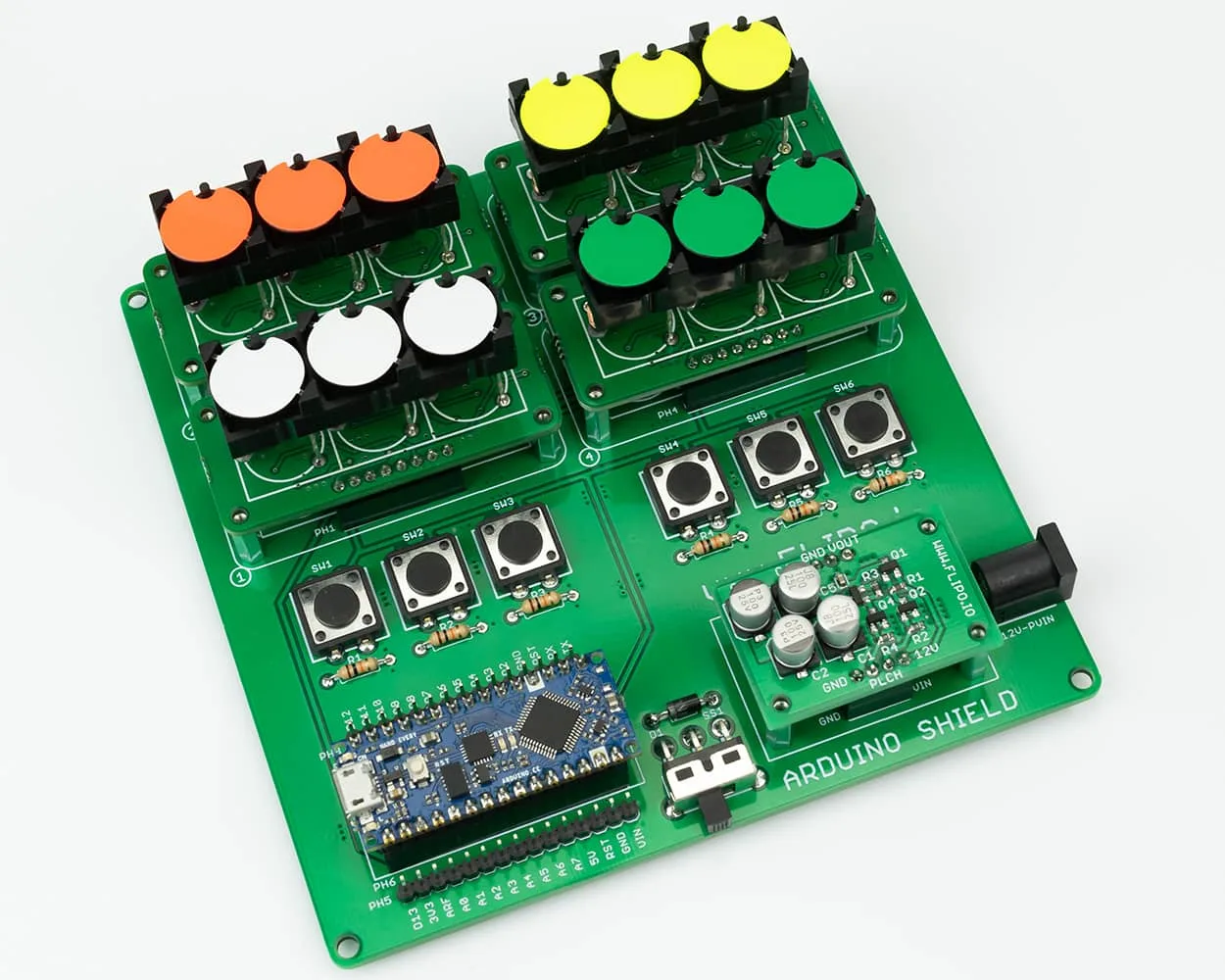

Arduino Shield 4x1x3 Flip-disc Display

HOW TO USE.

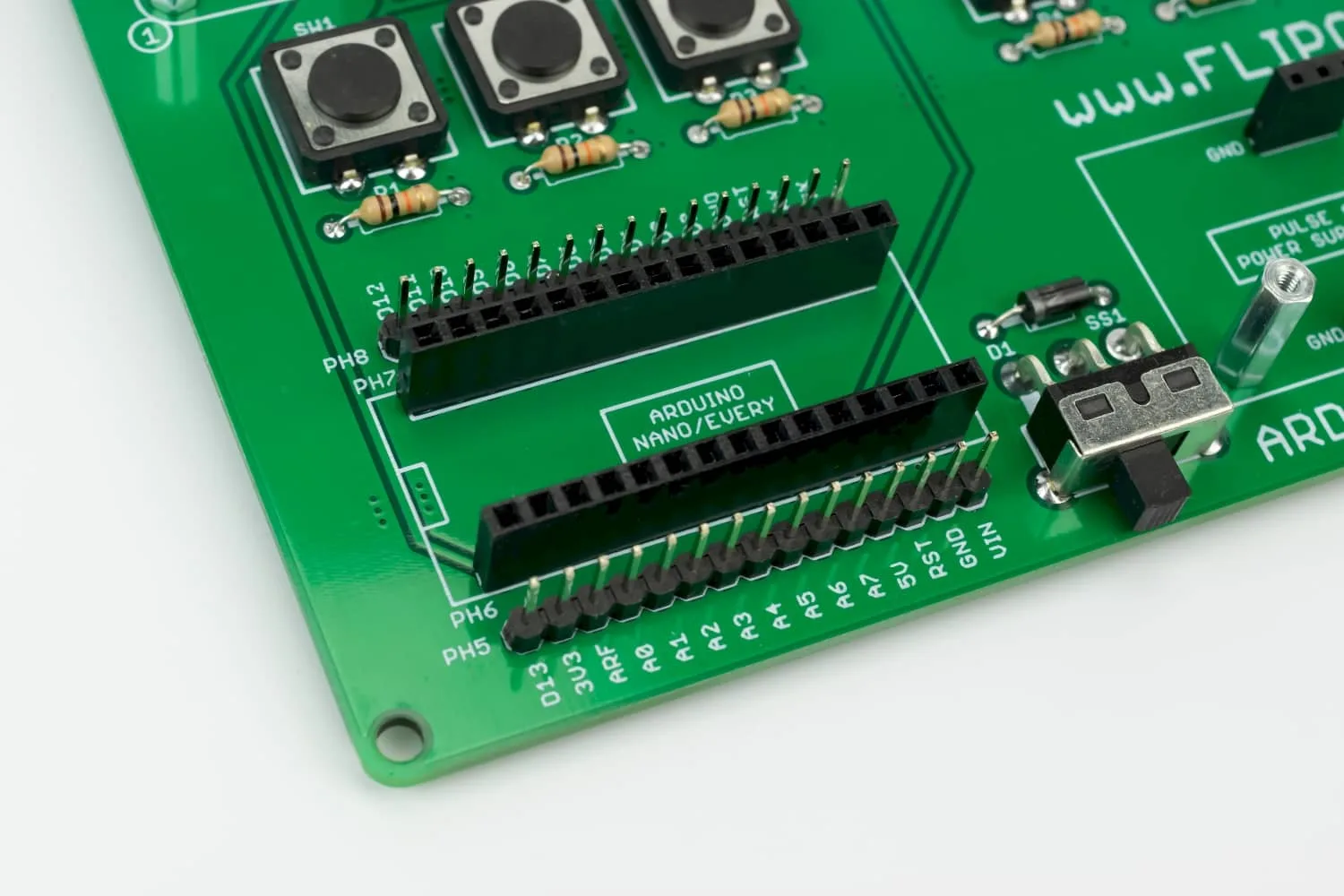

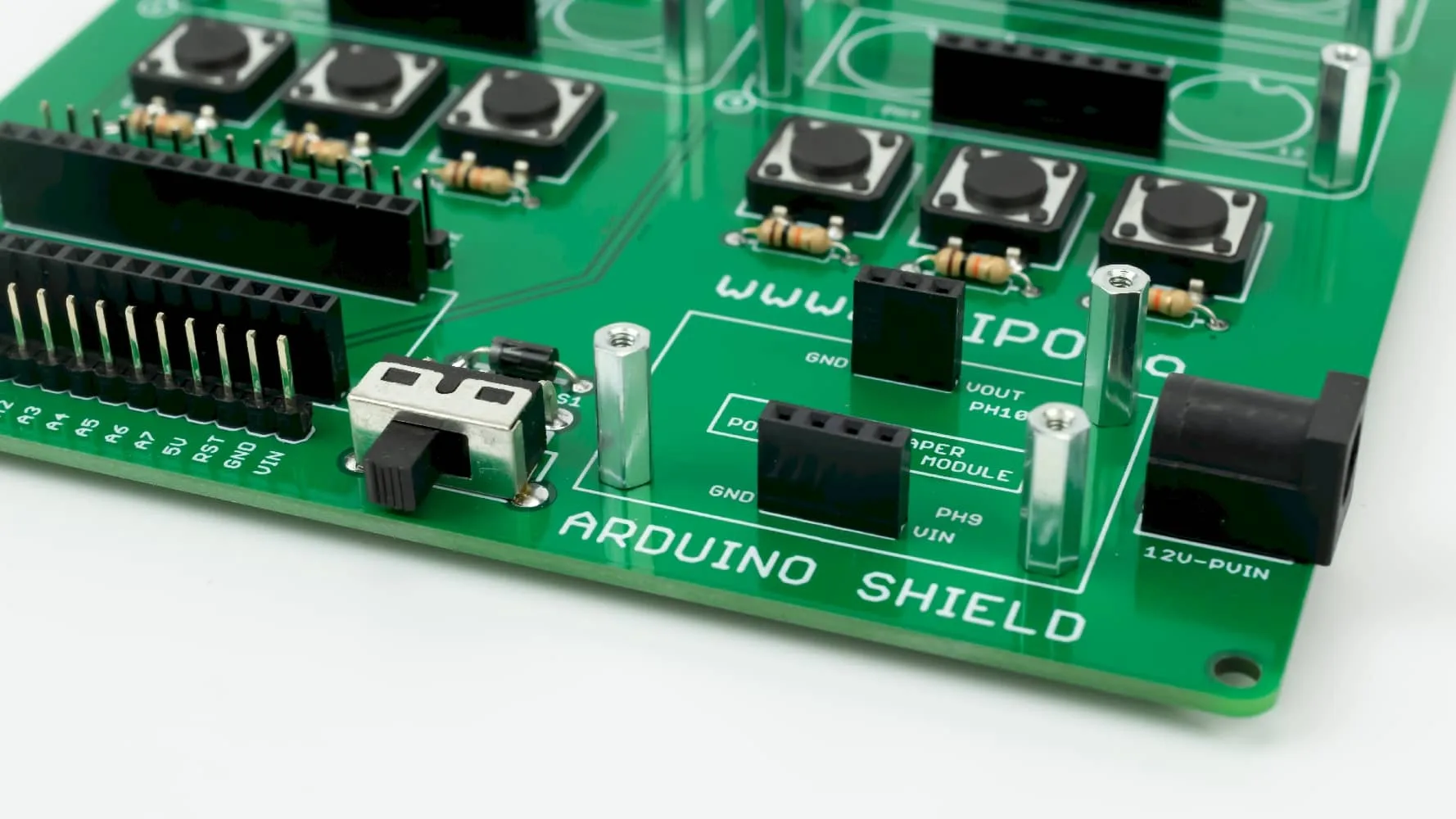

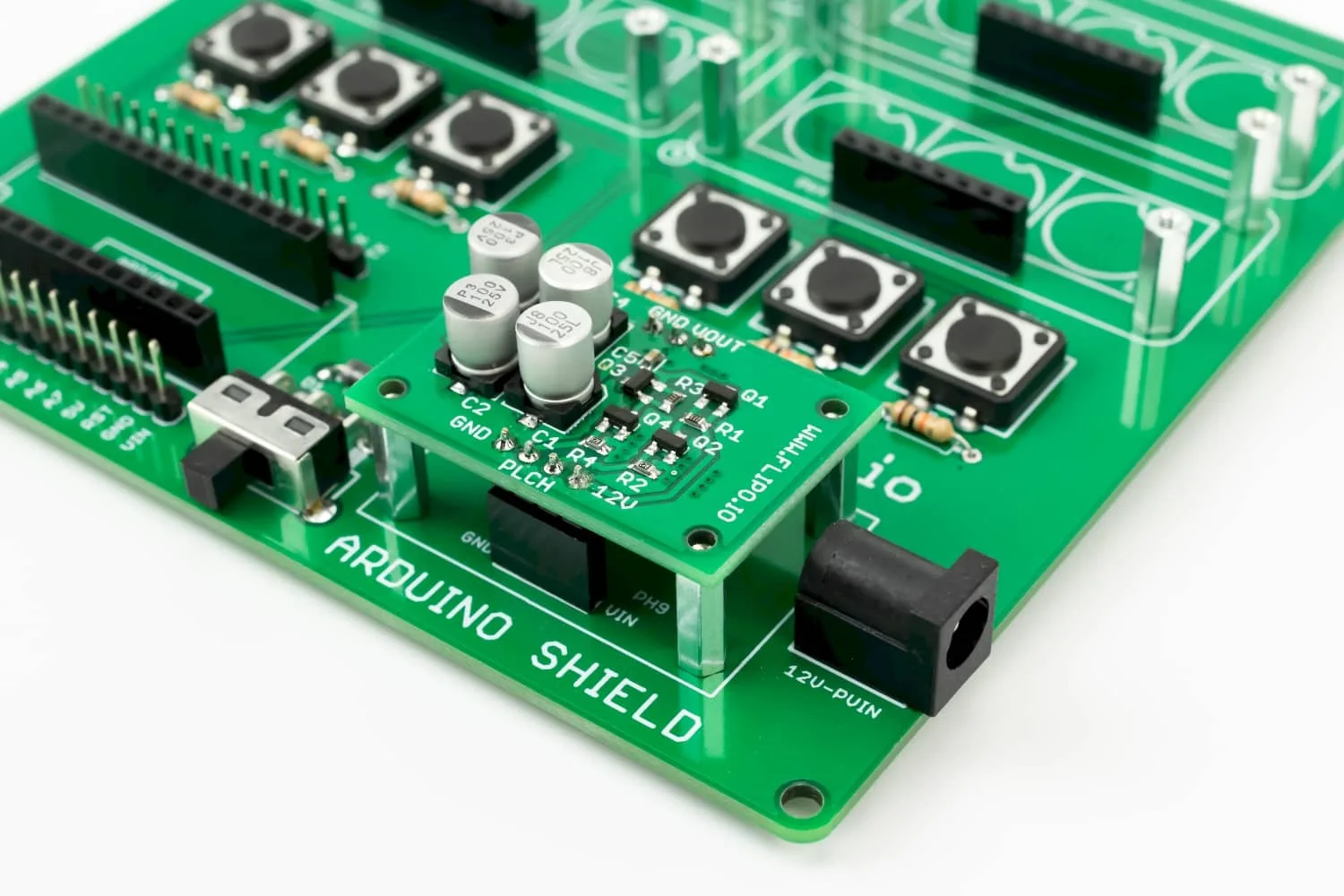

On board the shield is a power module called pulse shaper power supply, to control the power module, Arduino uses two pins labeled PL, CH. In the description of the PSPS project, you can see how the module works and for what purpose it is used. The shield requires an external 12V, 1A power supply to operate. Buttons can be used to directly control selected discs. The SS1 power switch should be in the OFF position when uploading code to the Arduino. The shield is designed to work with Arduino Nano Every – the cheapest and reliable Arduino board. The displays are controlled via SPI, the entire procedure for controlling the displays and PSPS module is covered by a dedicated Arduino library. Just connect the power supply, upload the code and everything is ready.

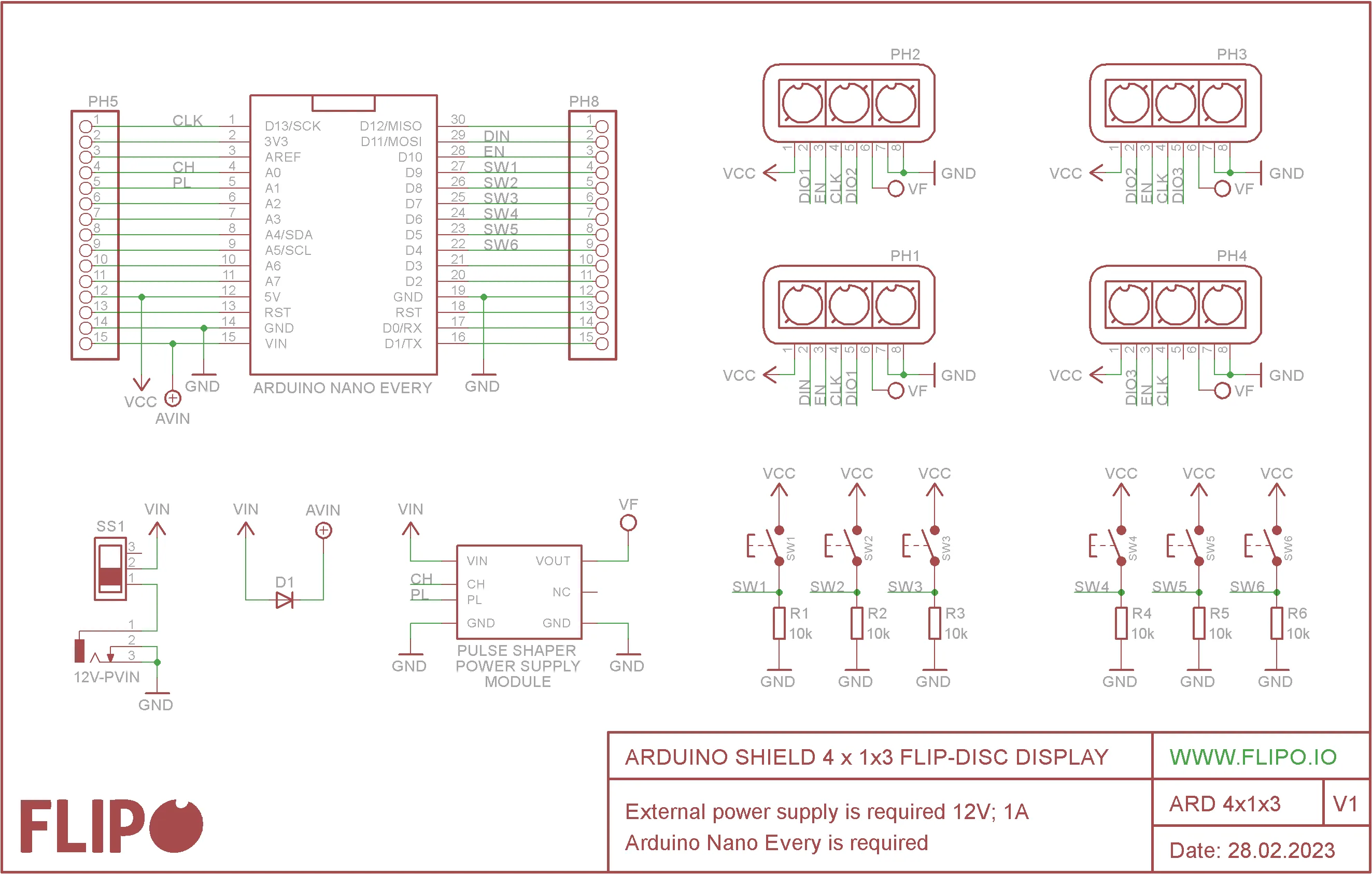

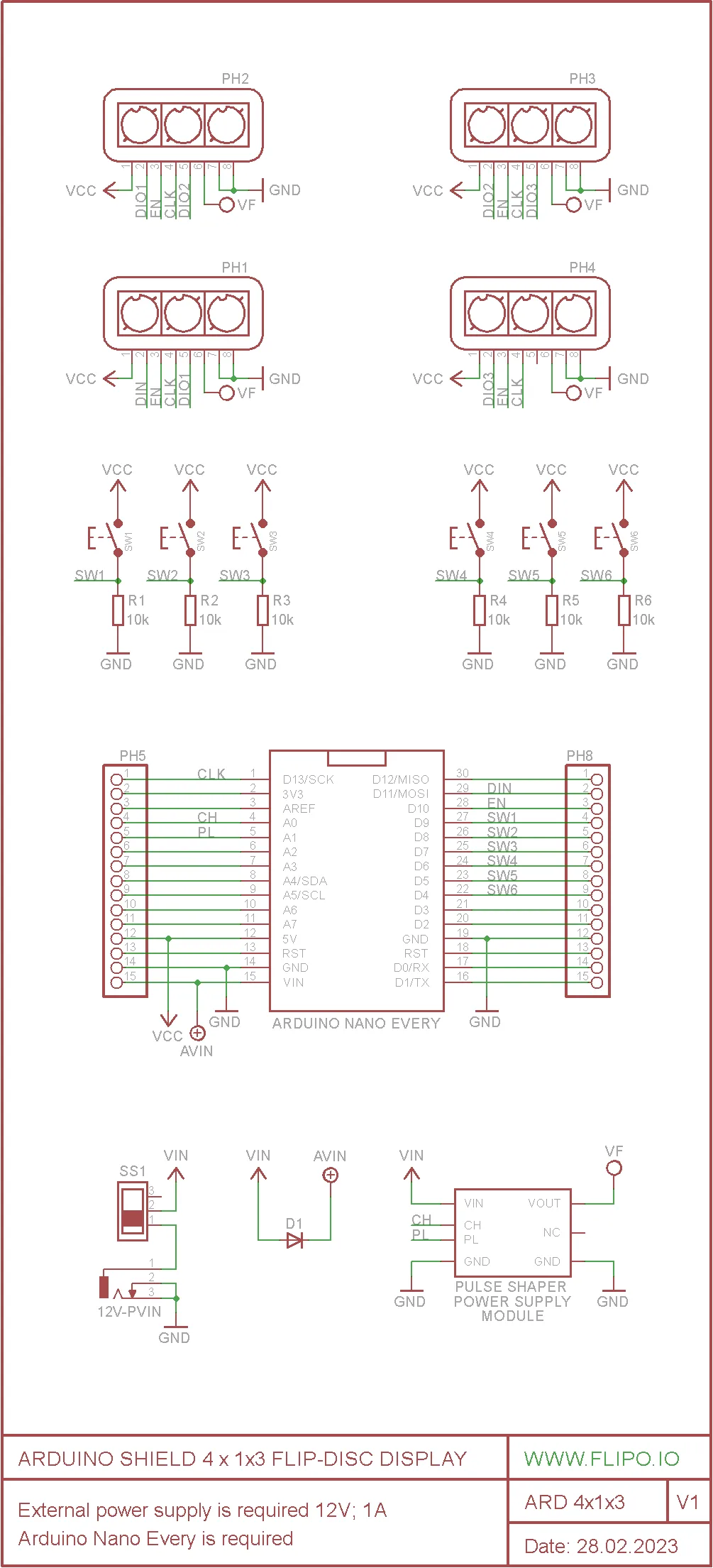

Arduino Shield 4x1x3 Flip-disc Display Schematic
Arduino Shield 4x1x3 Flip-disc Display Schematic
